| Brand Name: | Soeteck |
| Model Number: | 1 |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 5-10 Weeks |
| Payment Terms: | D/A |

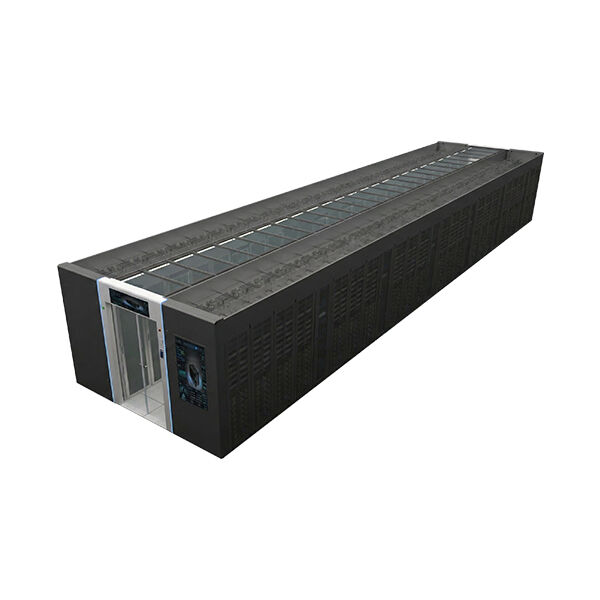

Overcome architectural constraints with our Customized Modular Data Center Solutions. Tailored for unique facility footprints and ultra-high-performance requirements, this service allows for the configuration of up to 48 cabinets with flexible aisle widths and heights. Whether you are retrofitting an irregular room or deploying a Tier IV mission-critical facility, our engineering team adapts the containment to your exact specifications.
Future-proof your infrastructure with advanced cooling options beyond standard air systems. Our custom solutions support Chilled Water and Direct-to-Chip Liquid Cooling integration, enabling extreme power densities of up to 15kW+ per rack for AI training and supercomputing. We offer fully redundant 2N power architectures to meet the most stringent uptime requirements of telecom and financial sectors.
| Configuration | IT Cabinets | Power / Cab | UPS System | Cooling Capacity | Refrigeration Type | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| Plan 1 › | 12 Cabinets | 5 kW | 90K Rack Modular (15kVA modules, 4+1) |
25.5kW x 4 (3+1 Redundancy) |
In-Row AC | 4200 x 3600 x 2000 mm |
| Plan 2 › | 12 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
65.5kW x 2 (1+1 Redundant) |
In-Row AC | 4800 x 3600 x 2000 mm |
| Plan 3 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
71.1kW x 1 (N Redundancy) |
Room-Level AC | 4800 x 3600 x 2000 mm |
| Plan 4 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
Custom Capacity (Tailored) |
FAN WALL | 4800 x 3600 x 2000 mm |
| Plan 5 › | 18 Cabinets | 5 kW | Modular N+1 (25kVA modules, 4+1) |
31.1kW x 4 (3+1 Redundancy) |
In-Row AC | 6000 x 3600 x 2000 mm |
| Plan 6 › | 24 Cabinets | 5 kW | Modular N+1 (25kVA modules, 5+1) |
40.9kW x 4 (3+1 Redundancy) |
In-Row AC | 8400 x 3600 x 2000 mm |
| Custom › | ≤ 48 Cabinets | ≤ 15 kW | Max 500kVA (2N/N+1 Redundancy) |
Flexible Capacity (Row or Room) |
Air / Water / Chilled | Length ≤ 15000 mm |
Tailored Dimensions: Unlike rigid standard modules, we customize aisle width, height, and length (up to 48 racks) to fit irregular room shapes, low ceilings, or existing support pillars.
Retrofit Friendly: Designed to deploy rapidly in repurposed warehouses or office spaces without requiring raised floors or extensive building modifications.
Beyond Air Cooling: Compatible with Chilled Water and Direct-to-Chip Liquid Cooling loops to support next-gen GPU clusters with densities >15kW/rack.
Hybrid Deployment: Support hybrid cooling architectures (Air + Liquid) within the same containment system to bridge the transition from legacy to AI infrastructure.
Focus on the core cooling demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
5-30 kW per Cabinet
Airtight cold aisle enclosure, 90%+ cold air utilization rate, PUE ≤ 1.2, fast deployment and flexible expansion for medium-density IT loads.
10-80 kW Total Power
Prefabricated all-in-one design, anti-vibration & dust-proof, plug-and-play, ideal for edge computing and temporary computing demand scenarios.
30-100 kW per Cabinet
Hybrid air-liquid cooling, direct heat dissipation from GPU/CPU, AI-ready design, high power density with low energy consumption.
50-200 kW per Cabinet
Immersion cooling with dielectric fluid, 100x higher heat dissipation efficiency than air cooling, PUE ≤ 1.1, perfect for ultra-high density AI clusters.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
