| Brand Name: | Soeteck |
| Model Number: | 1 |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 5-10 Weeks |
| Payment Terms: | D/A,L/C,D/P,T/T |

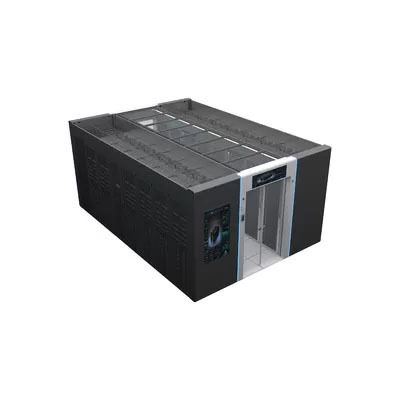

For high-density IT environments where energy efficiency and reliable cooling are non-negotiable, the Cold Aisle Containment Data Center with In-Row ACs delivers a turnkey solution that rethinks how data centers use cooling. By enclosing the cold aisle and pairing it with In-Row precision air conditioners, this system eliminates the waste of hot and cold air mixing—boosting energy efficiency far beyond what traditional data centers can achieve, all in a pre-built setup that’s ready to deploy quickly.
Built for mission-critical operations, this solution combines the reliability of modular power protection with the precision of targeted cooling, making it ideal for small and medium businesses, financial branch offices, and edge computing nodes. It’s designed to be installed easily on any floor type—concrete or raised—without extensive construction work, while still delivering the high-level reliability needed for demanding computing tasks like high-performance processing.
| Configuration | IT Cabinets | Power / Cab | UPS System | Cooling Capacity | Refrigeration Type | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| Plan 1 › | 12 Cabinets | 5 kW | 90K Rack Modular (15kVA modules, 4+1) |
25.5kW x 4 (3+1 Redundancy) |
In-Row AC | 4200 x 3600 x 2000 mm |
| Plan 2 › | 12 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
65.5kW x 2 (1+1 Redundant) |
In-Row AC | 4800 x 3600 x 2000 mm |
| Plan 3 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
71.1kW x 1 (N Redundancy) |
Room-Level AC | 4800 x 3600 x 2000 mm |
| Plan 4 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
Custom Capacity (Tailored) |
FAN WALL | 4800 x 3600 x 2000 mm |
| Plan 5 › | 18 Cabinets | 5 kW | Modular N+1 (25kVA modules, 4+1) |
31.1kW x 4 (3+1 Redundancy) |
In-Row AC | 6000 x 3600 x 2000 mm |
| Plan 6 › | 24 Cabinets | 5 kW | Modular N+1 (25kVA modules, 5+1) |
40.9kW x 4 (3+1 Redundancy) |
In-Row AC | 8400 x 3600 x 2000 mm |
| Custom › | ≤ 48 Cabinets | ≤ 15 kW | Max 500kVA (2N/N+1 Redundancy) |
Flexible Capacity (Row or Room) |
Air / Water / Chilled | Length ≤ 15000 mm |
The enclosed cold aisle features a fire-responsive magnetic skylight that automatically opens when a fire alarm is triggered, ensuring fire suppression gas can fill the space instantly and effectively. For access control, the system supports multiple secure verification methods—including facial recognition, fingerprint, password, and IC card—while electric sliding doors with panoramic tempered glass balance strict security with full visibility of the equipment inside.
By combining fully enclosed cold/hot aisles with In-Row air conditioning, cooling is delivered exactly where heat is generated—right next to server racks. This design stops hot and cold air from mixing, making cooling far more efficient than traditional room-wide cooling systems. The solution also includes an intelligent sleep mode for power modules, cutting down on unnecessary energy use and keeping operational costs low while maintaining optimal cooling performance.
Focus on the core cooling demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
5-30 kW per Cabinet
Airtight cold aisle enclosure, 90%+ cold air utilization rate, PUE ≤ 1.2, fast deployment and flexible expansion for medium-density IT loads.
10-80 kW Total Power
Prefabricated all-in-one design, anti-vibration & dust-proof, plug-and-play, ideal for edge computing and temporary computing demand scenarios.
30-100 kW per Cabinet
Hybrid air-liquid cooling, direct heat dissipation from GPU/CPU, AI-ready design, high power density with low energy consumption.
50-200 kW per Cabinet
Immersion cooling with dielectric fluid, 100x higher heat dissipation efficiency than air cooling, PUE ≤ 1.1, perfect for ultra-high density AI clusters.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
