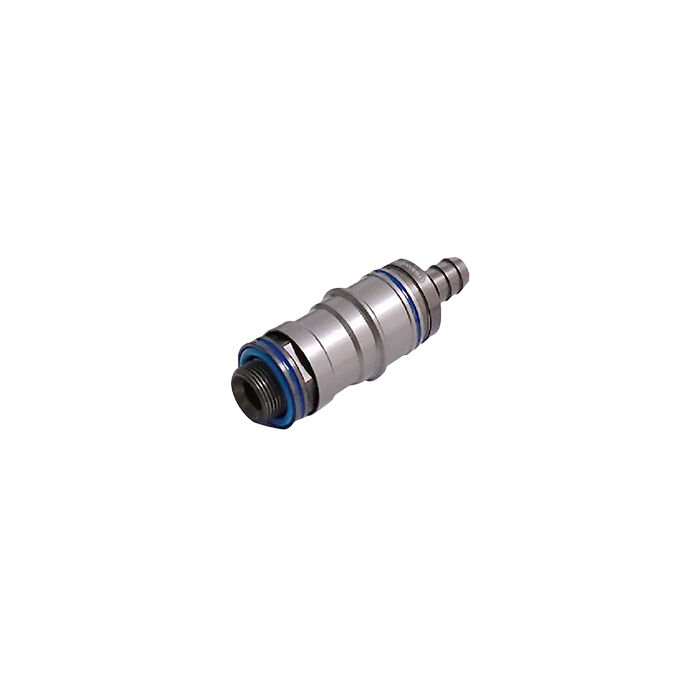

Quick Disconnect Coupling for Liquid Cooling Solutions
The Quick Disconnect Coupling (QDC) is the vital connector ensuring the integrity of the entire liquid cooling circulation system. It enables rapid connection and disconnection of devices without leakage, significantly reducing the workload for liquid maintenance and improving operational efficiency.
Our QDC solutions offer free connection and disconnection under pressure with zero leakage. Available in Manual Self-Fastening and Blind Connection series, they feature highly reliable sealing and support customized materials including stainless steel, aluminum, and copper to meet diverse cooling requirements.
| Model | Locking Mechanism | Load Type | Working Medium | Description |
|---|---|---|---|---|
| CGN Series › | Self-Fastening | Normal | General Coolant | Manual connection via sliding sleeve, steel ball fastening. |
| CGQ Series › | Quick Connector | Light Load | Glycol, Aqueous Solution | Direct steel ball fastening for rapid manual operation. |
| CGB Series › | Blind Connection | Light Load | Glycol, Aqueous Solution | Locked by external structure (e.g., chassis), no internal fastening. |
| UQD Series › | Universal | Universal | Various | Available in 2/4/6/8 inch equivalents, SUS304/316 Base. |
Our couplings feature a Bidirectional Self-Sealing design. When disconnected, both ends automatically seal to prevent any coolant spillage. This ensures clean maintenance and enables safe "hot-swapping" of liquid-cooled components.
We offer a wide range of sealing materials to match your specific coolant and temperature needs, including EPDM (-45~150°C for Ethylene Glycol), FKM (strong acid/alkali resistance), and NBR. Body materials include SUS304, SUS316, and Anodized Aluminum.
Focus on the core cooling demands of high-density data center deployments, where our full range of liquid cooling products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
In-Rack / In-Row / In-Room
The heart of liquid cooling. Available in Rack-mounted (50-80kW), In-Row (350-900kW), and large-scale In-Room (up to 2MW) configurations. Features N+1 redundancy and smart control.
PUE < 1.2
Single-phase immersion technology for ultimate heat dissipation. Integrated plug-and-play design suitable for edge nodes and high-density clusters. Silent operation with PUE < 1.2.
Prefab & Modular
Rapid-deployment modular data center. A turnkey solution integrating power, liquid cooling (Cold Plate or Immersion), and monitoring. Ideal for AI training and crypto mining.
High-Quality
Essential components for safety and efficiency. Includes high-precision Manifolds, flexible Secondary Loops, and Quick Disconnects (QD) with leak-prevention design.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
