| Brand Name: | Soeteck |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 4 Weeks |
| Payment Terms: | D/A |

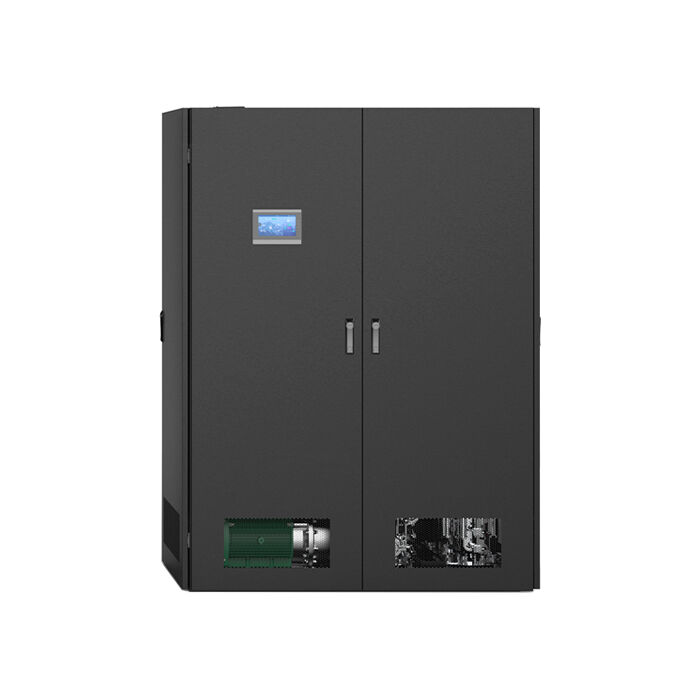

The AlCoolit™ In-Room CDU serves as an industrial-grade core infrastructure component for hyperscale data centers. It delivers substantial, centralized cooling capability to handle the heat loads of entire server rooms.
With a per-unit capacity reaching 2000kW, this system streamlines coolant distribution to achieve superior efficiency. It remains the preferred solution for large-scale implementations where centralized control and energy performance are critical.
| Model No. | Cooling Capacity | Rated Power | Flow Rate | Design Temp (In/Out) | Dimensions (WxDxH) |
|---|---|---|---|---|---|
| SY-RM-1000 › | 1000 kW | 18.5 kW | 95.39 m³/h | Pri: 35/45°C Sec: 50/40°C |
1000 x 1200 x 2200 mm |
| SY-RM-1350 › | 1350 kW | 26 kW | 128.89 m³/h | Pri: 35/45°C Sec: 50/40°C |
1396 x 1200 x 2245 mm |
| SY-RM-2000 › | 2000 kW | 33 kW | 190.78 m³/h | Pri: 35/45°C Sec: 50/40°C |
1396 x 1200 x 2245 mm |
Providing up to 2000kW of heat removal capacity per chassis, the SY-CDU-RM series excels in large-scale environments. Its large-bore piping (up to DN159) helps reduce flow resistance and pump energy usage across extensive facility networks.
Centralizing coolant distribution at the room level streamlines upkeep and operations. This design enables a holistic approach to water chemistry control, filtration, and pressure management across the entire data hall.
Focus on the core cooling demands of high-density data center deployments, where our full range of liquid cooling products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
In-Rack / In-Row / In-Room
The heart of liquid cooling. Available in Rack-mounted (50-80kW), In-Row (350-900kW), and large-scale In-Room (up to 2MW) configurations. Features N+1 redundancy and smart control.
PUE < 1.2
Single-phase immersion technology for ultimate heat dissipation. Integrated plug-and-play design suitable for edge nodes and high-density clusters. Silent operation with PUE < 1.2.
Prefab & Modular
Rapid-deployment modular data center. A turnkey solution integrating power, liquid cooling (Cold Plate or Immersion), and monitoring. Ideal for AI training and crypto mining.
High-Quality
Essential components for safety and efficiency. Includes high-precision Manifolds, flexible Secondary Loops, and Quick Disconnects (QD) with leak-prevention design.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
