| Brand Name: | Soeteck |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 4 Weeks |
| Payment Terms: | D/A |

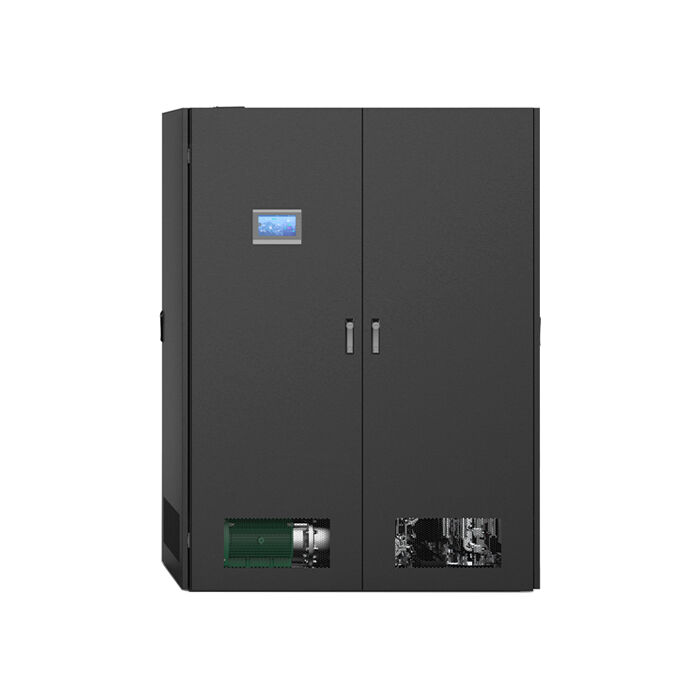

The AlCoolit™ In-Room Coolant Distribution Unit is an industrial-grade infrastructure solution designed for hyperscale data centers. It provides massive, centralized cooling capacity to manage the thermal loads of entire server halls.
With capacities reaching 2000kW per unit, this system consolidates coolant distribution for high efficiency. It is the preferred choice for large-scale deployments where centralized management and energy efficiency are paramount.
| Model No. | Cooling Capacity | Rated Power | Flow Rate | Design Temp (In/Out) | Dimensions (WxDxH) |
|---|---|---|---|---|---|
| SY-RM-1000 › | 1000 kW | 18.5 kW | 95.39 m³/h | Pri: 35/45°C Sec: 50/40°C |
1000 x 1200 x 2200 mm |
| SY-RM-1350 › | 1350 kW | 26 kW | 128.89 m³/h | Pri: 35/45°C Sec: 50/40°C |
1396 x 1200 x 2245 mm |
| SY-RM-2000 › | 2000 kW | 33 kW | 190.78 m³/h | Pri: 35/45°C Sec: 50/40°C |
1396 x 1200 x 2245 mm |
Delivering up to 2000kW of cooling power in a single unit, the SY-CDU-RM series is built for scale. It features large-diameter piping (up to DN159) to minimize pressure drop and energy consumption across massive facility loops.
Consolidating your cooling distribution into a centralized "Room" level unit simplifies facility maintenance. It allows for a unified approach to water quality management, filtration, and pressure regulation for the entire data center.
Focus on the core cooling demands of high-density data center deployments, where our full range of liquid cooling products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
In-Rack / In-Row / In-Room
The heart of liquid cooling. Available in Rack-mounted (50-80kW), In-Row (350-900kW), and large-scale In-Room (up to 2MW) configurations. Features N+1 redundancy and smart control.
PUE < 1.2
Single-phase immersion technology for ultimate heat dissipation. Integrated plug-and-play design suitable for edge nodes and high-density clusters. Silent operation with PUE < 1.2.
Prefab & Modular
Rapid-deployment modular data center. A turnkey solution integrating power, liquid cooling (Cold Plate or Immersion), and monitoring. Ideal for AI training and crypto mining.
High-Quality
Essential components for safety and efficiency. Includes high-precision Manifolds, flexible Secondary Loops, and Quick Disconnects (QD) with leak-prevention design.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
