| Brand Name: | Soeteck |
| Model Number: | 1 |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 5-10 Weeks |
| Payment Terms: | D/A,L/C,D/P,T/T |

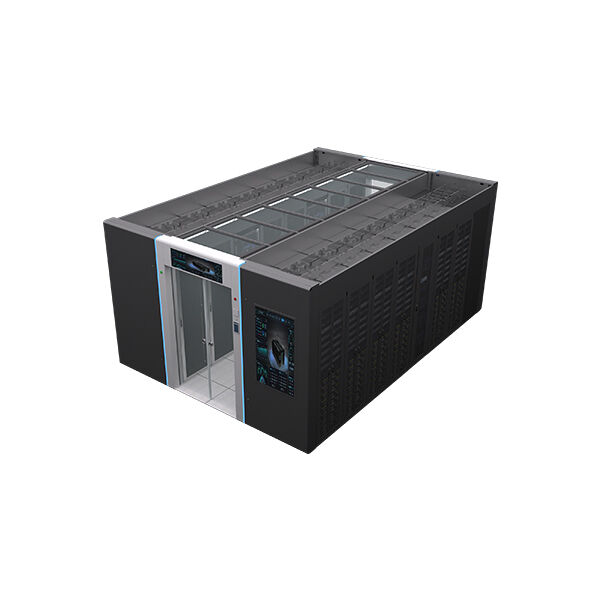

The 12-Rack Cold Aisle Containment Data Center is a turnkey smart micro-module solution engineered for rapid deployment in high-density IT environments. Integrating 12 cabinets into a fully enclosed system with a standard footprint length of 4800mm, this pre-fabricated solution utilizes precision In-Row cooling to achieve an ultra-low PUE of 1.30, delivering 35% higher energy efficiency than traditional legacy data centers.
Designed for mission-critical reliability, this Tier IV-ready infrastructure supports High-Performance Computing (HPC) with a robust Modular UPS System (available in Rack-Mounted or Tower configurations) and N+1 redundancy. It offers a scalable, plug-and-play architecture ideal for SMEs, Financial Branches, and Edge Computing nodes, capable of seamless installation on both concrete and raised floors without extensive engineering.
| Configuration | IT Cabinets | Power / Cab | UPS System | Cooling Capacity | Refrigeration Type | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| Plan 1 › | 12 Cabinets | 5 kW | 90K Rack Modular (15kVA modules, 4+1) |
25.5kW x 4 (3+1 Redundancy) |
In-Row AC | 4200 x 3600 x 2000 mm |
| Plan 2 › | 12 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
65.5kW x 2 (1+1 Redundant) |
In-Row AC | 4800 x 3600 x 2000 mm |
| Plan 3 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
71.1kW x 1 (N Redundancy) |
Room-Level AC | 4800 x 3600 x 2000 mm |
| Plan 4 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
Custom Capacity (Tailored) |
FAN WALL | 4800 x 3600 x 2000 mm |
| Plan 5 › | 18 Cabinets | 5 kW | Modular N+1 (25kVA modules, 4+1) |
31.1kW x 4 (3+1 Redundancy) |
In-Row AC | 6000 x 3600 x 2000 mm |
| Plan 6 › | 24 Cabinets | 5 kW | Modular N+1 (25kVA modules, 5+1) |
40.9kW x 4 (3+1 Redundancy) |
In-Row AC | 8400 x 3600 x 2000 mm |
| Custom › | ≤ 48 Cabinets | ≤ 15 kW | Max 500kVA (2N/N+1 Redundancy) |
Flexible Capacity (Row or Room) |
Air / Water / Chilled | Length ≤ 15000 mm |
Active Fire Protection: The aisle is equipped with a magnetic-locked skylight that automatically opens/drops upon receiving a fire signal, allowing suppression gas to enter instantly.
Smart Access Control: Supports multiple authentication methods including Facial Recognition, Fingerprint, Password, and IC Card. Electric sliding doors with 12mm panoramic tempered glass ensure both security and visibility.
Precision Cooling: By integrating In-Row air conditioning and fully enclosing the cold/hot aisle, we achieve precise cooling directly at the heat source.
Energy Saving: This architecture eliminates hot/cold air mixing, improving cooling efficiency by over 30% compared to traditional room-cooling. The system also features Intelligent Sleep Mode for UPS modules to further reduce power consumption.
Focus on the core cooling demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
5-30 kW per Cabinet
Airtight cold aisle enclosure, 90%+ cold air utilization rate, PUE ≤ 1.2, fast deployment and flexible expansion for medium-density IT loads.
10-80 kW Total Power
Prefabricated all-in-one design, anti-vibration & dust-proof, plug-and-play, ideal for edge computing and temporary computing demand scenarios.
30-100 kW per Cabinet
Hybrid air-liquid cooling, direct heat dissipation from GPU/CPU, AI-ready design, high power density with low energy consumption.
50-200 kW per Cabinet
Immersion cooling with dielectric fluid, 100x higher heat dissipation efficiency than air cooling, PUE ≤ 1.1, perfect for ultra-high density AI clusters.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
