| Brand Name: | Soeteck |
| Model Number: | CGN Series |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 30-45 working days |
| Payment Terms: | D/A |

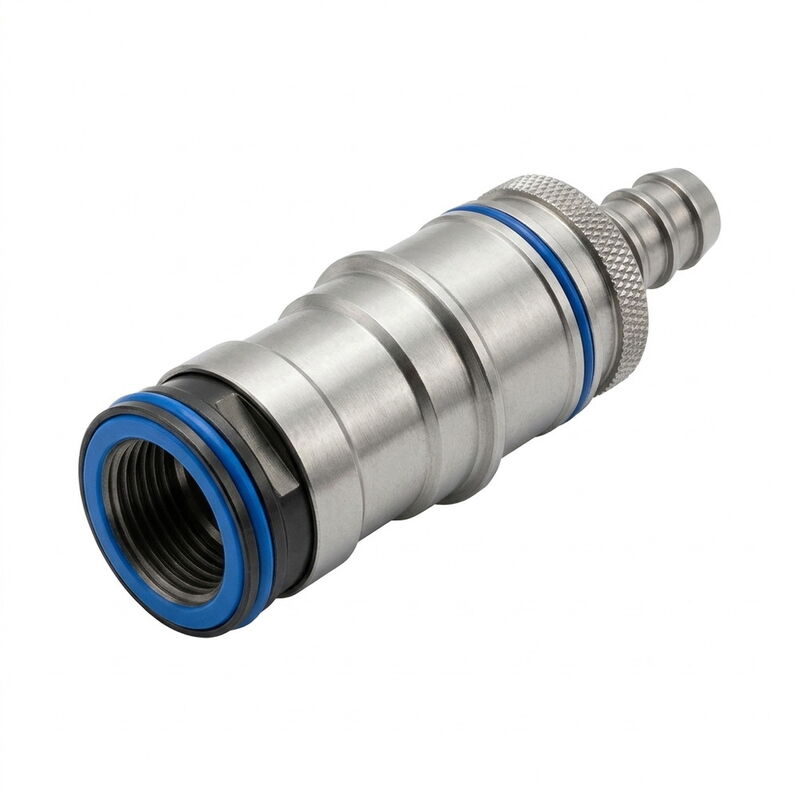

Quick Disconnect Coupling for Liquid Cooling Solutions
The CGN Series is a self-fastening quick disconnect coupling built for the coolant loop of cold plate liquid cooling systems in data centers. Pulling the outer sleeve back retracts the internal steel balls, so a technician connects or releases the joint by hand - no tools, no torque setting and no drain-down of the loop - and the joint locks again as soon as the sleeve is released.
Rated for normal load duty with general coolant, the CGN Series pairs that manual locking action with a bidirectional self-sealing valve, so both halves close the moment they separate and no glycol or water reaches the rack floor. Bodies are available in stainless steel or anodized aluminum, with internal thread, external thread, flange, pagoda (barb) and union interfaces to fit existing piping.
| Model | Locking Mechanism | Load Type | Working Medium | Description |
|---|---|---|---|---|
| CGN Series › | Self-Fastening | Normal | General Coolant | Manual connection via sliding sleeve, steel ball fastening. |
| CGQ Series › | Quick Connector | Light Load | Glycol, Aqueous Solution | Direct steel ball fastening for rapid manual operation. |
| CGB Series › | Blind Connection | Light Load | Glycol, Aqueous Solution | Locked by external structure (e.g., chassis), no internal fastening. |
| UQD Series › | Universal | Universal | Various | Available in 2/4/6/8 inch equivalents, SUS304/316 Base. |
The CGN Series locks by hand: pull the knurled sleeve back, the steel balls retract into the body, slide the two halves together and release the sleeve so the balls seat in the mating groove. No wrench, no torque setting and no thread sealant are required, which keeps a cold plate manifold serviceable inside a live rack.
Each half of the CGN coupling carries its own valve, so the circuit closes on both sides the instant the halves separate - the line stays charged and the rack floor stays dry. For general coolant duty the standard seal is EPDM, rated -45°C to 150°C for ethylene glycol and deionized water; FKM and NBR cover other media, and bodies are supplied in SUS304, SUS316 or anodized aluminum.
