| Brand Name: | Soeteck |
| Model Number: | CGB Series |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 30-45 working days |
| Payment Terms: | D/A |

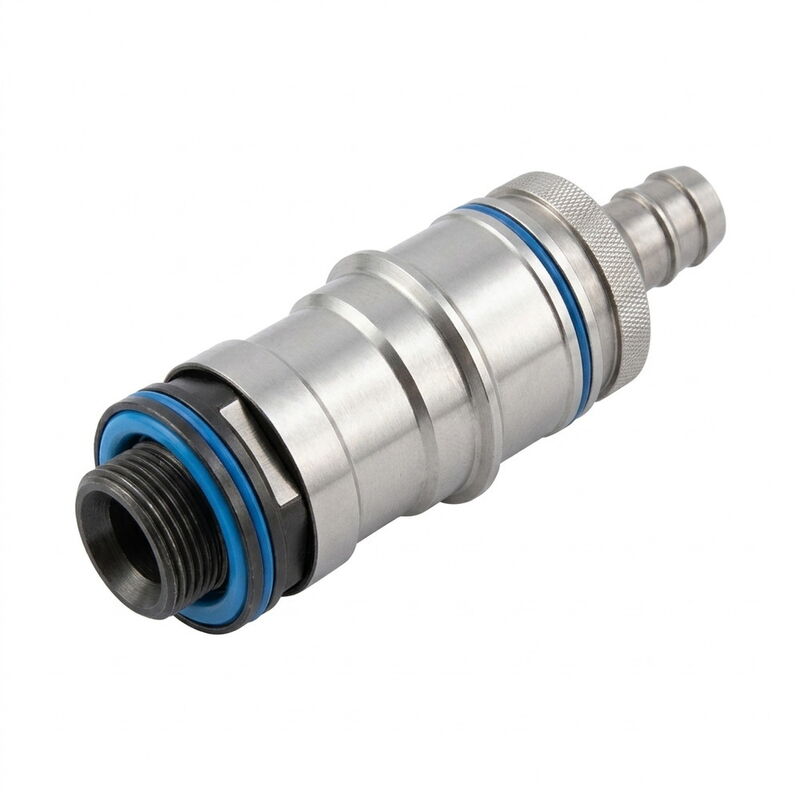

Quick Disconnect Coupling for Liquid Cooling Solutions
The CGB Series is a blind connection quick disconnect coupling for liquid-cooled server trays. It carries no internal fastener: the coupling is held by the external structure it is mounted in - the chassis, tray rail or manifold bracket - so the two halves align and dock automatically as the tray slides home, and separate again when the tray is pulled out.
Specified for light load loops carrying glycol and aqueous solution, the CGB Series seals both sides the instant the halves part, so a tray can be removed from a live rack without draining the loop or wetting the floor. The standard EPDM seal covers -45°C to 150°C with ethylene glycol and deionized water, with FKM and NBR available for other media; bodies come in SUS304, SUS316 or anodized aluminum, with thread, flange, barb and union interfaces.
| Model | Locking Mechanism | Load Type | Working Medium | Description |
|---|---|---|---|---|
| CGN Series › | Self-Fastening | Normal | General Coolant | Manual connection via sliding sleeve, steel ball fastening. |
| CGQ Series › | Quick Connector | Light Load | Glycol, Aqueous Solution | Direct steel ball fastening for rapid manual operation. |
| CGB Series › | Blind Connection | Light Load | Glycol, Aqueous Solution | Locked by external structure (e.g., chassis), no internal fastening. |
| UQD Series › | Universal | Universal | Various | Available in 2/4/6/8 inch equivalents, SUS304/316 Base. |
The CGB Series has no internal lock at all: the coupling body is held together by the external structure it is mounted in, typically the chassis or tray rail, so the two halves line up and dock automatically as the tray slides home. No lever, no sleeve and no tool are involved - a blind mate completes the joint, and both valves close again the moment the tray is pulled out.
Because a blind mate cannot be inspected after docking, the seal has to be right the first time. The CGB Series is specified for glycol and aqueous solution: the standard EPDM seal is rated -45°C to 150°C with ethylene glycol and deionized water, while FKM and NBR cover other media. Bodies are supplied in SUS304, SUS316 or anodized aluminum.
