| Brand Name: | Soeteck |
| Model Number: | UQD Series |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 30-45 working days |
| Payment Terms: | D/A |

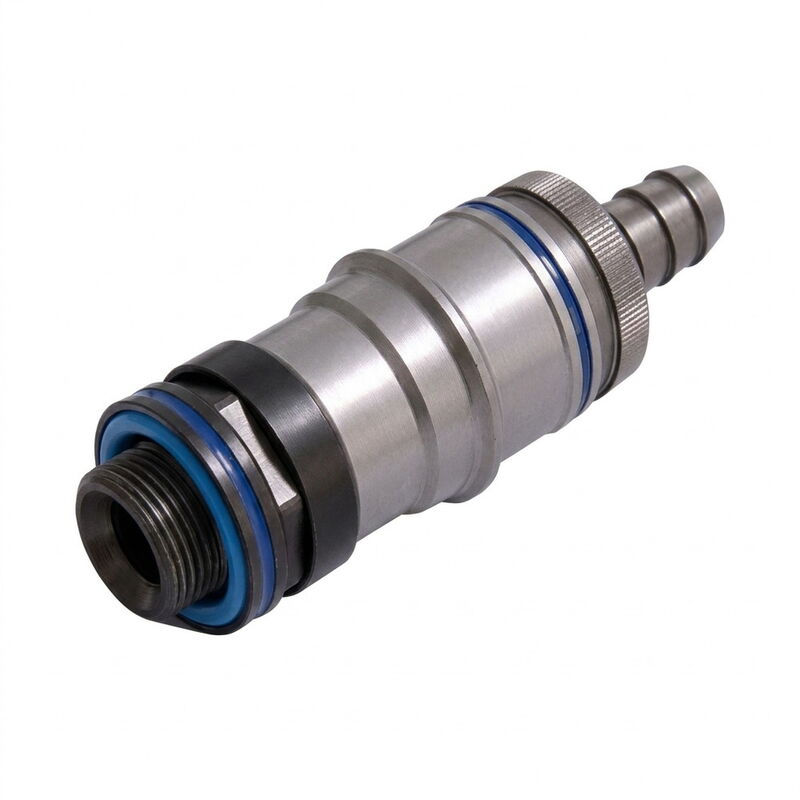

Quick Disconnect Coupling for Liquid Cooling Solutions
The UQD Series is the universal quick disconnect coupling in our liquid cooling family. One body design covers 2, 4, 6 and 8 inch equivalents, so a facility can standardise on a single coupling type across its loops instead of stocking a different part for every line size, and it is rated as universal for both load and working medium.
The body is built on a SUS304 or SUS316 stainless base, which keeps the wetted surfaces corrosion-resistant in glycol, aqueous solution and deionized water. Both halves seal themselves the moment they separate, so a loop can be opened and re-made without draining it; seals are available in EPDM (-45°C to 150°C with ethylene glycol), FKM and NBR, and the interface can be thread, flange, barb or union.
| Model | Locking Mechanism | Load Type | Working Medium | Description |
|---|---|---|---|---|
| CGN Series › | Self-Fastening | Normal | General Coolant | Manual connection via sliding sleeve, steel ball fastening. |
| CGQ Series › | Quick Connector | Light Load | Glycol, Aqueous Solution | Direct steel ball fastening for rapid manual operation. |
| CGB Series › | Blind Connection | Light Load | Glycol, Aqueous Solution | Locked by external structure (e.g., chassis), no internal fastening. |
| UQD Series › | Universal | Universal | Various | Available in 2/4/6/8 inch equivalents, SUS304/316 Base. |
The UQD Series is the universal member of the family: the same body design is offered in 2, 4, 6 and 8 inch equivalents, so a single coupling type can be specified across a whole facility instead of matching a different part to every line size. Both halves are self-sealing, so a loop can be opened and re-made without dumping its coolant.
The UQD Series is built on a SUS304 or SUS316 stainless base, which keeps the wetted surfaces corrosion-resistant in glycol, aqueous solution and deionized water loops. Seal options are EPDM (rated -45°C to 150°C with ethylene glycol), FKM for aggressive media and NBR, and the interfaces can be supplied as internal thread, external thread, flange, pagoda (barb) or union.
