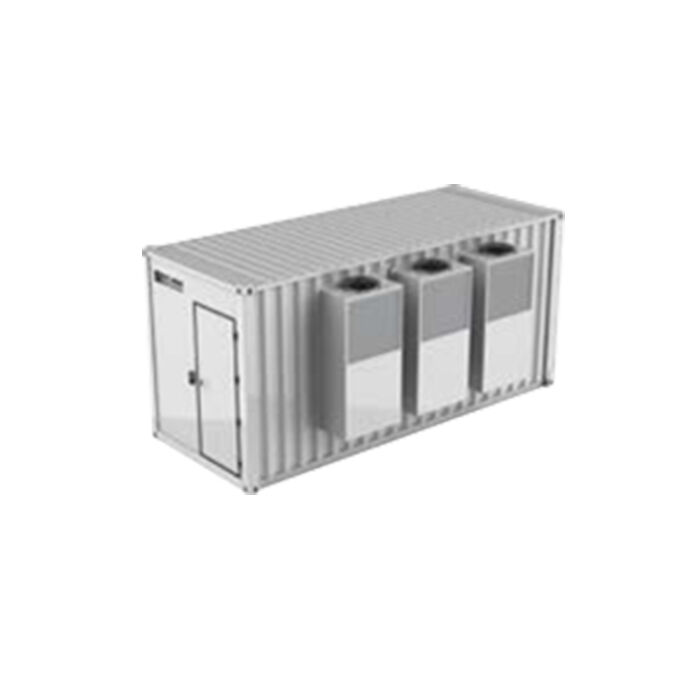

The SOETECK ICDC20 Modular Data Center 20ft Container represents the gold standard in modular data center containers for edge computing and small-to-medium enterprise applications. By modularizing the entire data hall into a 20ft High Cube form factor, we allow businesses to add 25kW of IT capacity in a single day, bypassing the multi-year timelines of traditional construction.
This modular solution is available in Standard (Type A) and High-Density (Type B) configurations. It features a fully redundant N+1 Modular UPS architecture and integrated fire suppression, offering the reliability of a Tier 3 data center with the speed and flexibility of a manufactured product.
| Model | Cooling Architecture | Rack / Tank Count | Max Power Density | Total Capacity | Container Type | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| 20ft Immersion › | Single-Phase Immersion (Integrated FDU) |
4 Tanks | 100 kW / Tank | 400 kW | 20ft High Cube | 6058 x 2438 x 2896 mm |
| 40ft Immersion › | Single-Phase Immersion (Integrated FDU) |
12 Tanks | 100 kW / Tank | 1.2 MW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 40ft Cold Plate (In-Row) › | In-Row CDU (Liquid-to-Liquid / Air Assist) |
12 Racks (Space for CDUs) |
60 kW / Rack | 720 kW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 40ft Cold Plate (Rack) › | Rack-Mounted CDU (Distributed Manifold) |
14 Racks (Maximized Space) |
50 kW / Rack | 700 kW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 20ft Cold Plate (Rack) › | Rack-Mounted CDU (Distributed Manifold) |
5 Racks | 50 kW / Rack | 250 kW | 20ft High Cube | 6058 x 2438 x 2896 mm |
The ICDC20-Type B arrives with a pre-installed 30kVA Modular UPS system. We use an intelligent 3-in-1 power distribution cabinet that is wired and tested in the factory. This integrated design saves 68% of space compared to field-assembled electrical rooms, maximizing space for your revenue-generating servers.
Factory modular integration ensures perfect sealing for our Cold/Hot aisle containment system. Unlike site-built containment which often leaks, our modules are pressure-tested to eliminate hot spots. Combined with In-Row cooling, this precision engineering delivers a guaranteed PUE of 1.2.
Focus on the core cooling demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
1-80 kW
High thermal conductivity, compact footprint, direct heat transfer, ideal for high-power electronic components.
10-80 kW
Uniform temperature control, zero dust intrusion, ideal for high-density data centers & supercomputers.
21.2-31.1 kW
No server room reconstruction, high heat rejection efficiency, plug-and-play installation, fits existing rack infrastructure.
20-1600 kW
Redundant fan design, low noise level, adjustable airflow, perfect for data centers & industrial cooling facilities.
Empowering next-generation edge infrastructure with superior thermal management for distributed computing demands.
