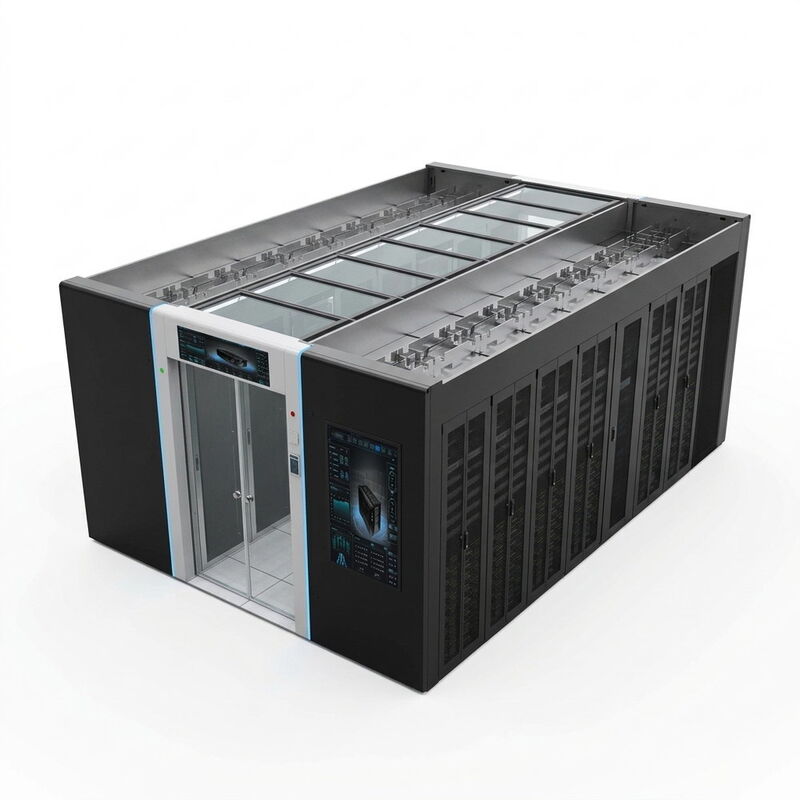

This prefabricated modular data center is a room-level installation built around 14 IT cabinets and a 4800 x 3600 x 2000 mm footprint. Power is delivered by a 120K tower modular UPS (30kVA modules, 3+1) at 5 kW per cabinet, so the hall can be commissioned and expanded without reworking the electrical room.
Cooling is handled by room-level precision air conditioning sized at 71.1 kW with N redundancy — a simpler, lower-cost alternative to in-row architectures when the room already has usable floor space. Like the rest of the series it arrives pre-engineered for rapid deployment, with cold/hot aisle containment keeping airflow separated to hold PUE down.
| Configuration | IT Cabinets | Power / Cab | UPS System | Cooling Capacity | Refrigeration Type | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| Plan 1 › | 12 Cabinets | 5 kW | 90K Rack Modular (15kVA modules, 4+1) |
25.5kW x 4 (3+1 Redundancy) |
In-Row AC | 4200 x 3600 x 2000 mm |
| Plan 2 › | 12 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
65.5kW x 2 (1+1 Redundant) |
In-Row AC | 4800 x 3600 x 2000 mm |
| Plan 3 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
71.1kW x 1 (N Redundancy) |
Room-Level AC | 4800 x 3600 x 2000 mm |
| Plan 4 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
Custom Capacity (Tailored) |
FAN WALL | 4800 x 3600 x 2000 mm |
| Plan 5 › | 18 Cabinets | 5 kW | Modular N+1 (25kVA modules, 4+1) |
31.1kW x 4 (3+1 Redundancy) |
In-Row AC | 6000 x 3600 x 2000 mm |
| Plan 6 › | 24 Cabinets | 5 kW | Modular N+1 (25kVA modules, 5+1) |
40.9kW x 4 (3+1 Redundancy) |
In-Row AC | 8400 x 3600 x 2000 mm |
| Custom › | ≤ 48 Cabinets | ≤ 15 kW | Max 500kVA (2N/N+1 Redundancy) |
Flexible Capacity (Row or Room) |
Air / Water / Chilled | Length ≤ 15000 mm |
Space Flexibility: Our modular platform is built for adjustability. We tailor aisle configurations (supporting up to 48 racks) to accommodate odd-shaped rooms, lowered ceilings, or structural pillars, maximizing usable floor area.
Efficient Air Management: The fully enclosed aisle containment solution physically separates cold and hot air pathways, eliminating mixing and enhancing cooling performance for dense IT equipment.
Grow-on-Demand: Begin with the required capacity and scale effortlessly. Our modular design enables you to seamlessly integrate additional cooling units and racks as operational needs increase.
Ready for Next-Gen Workloads: The modular racks come pre-configured to accommodate hybrid cooling approaches, blending conventional air cooling with liquid cooling circuits to support densities exceeding 15kW per rack.
Tailored to diverse deployment scenarios—including small enterprise IT rooms, retrofitted traditional data centers and outdoor edge nodes—our modular data center solutions balance performance, cost and energy efficiency.
3-15 kW per Cabinet
All-in-one integrated cabinet design, plug-and-play deployment (1-3 days), remote intelligent monitoring. Ideal for edge endpoints like retail stores, ATMs and small enterprise IT rooms.
8-30 kW per Cabinet
Column-level prefabricated design, flexible expansion by rows, fits existing server rooms without major reconstruction. PUE 1.2-1.4, perfect for medium-density enterprise IT deployments.
15-40 kW per Cabinet
Airtight cold/hot aisle enclosure, 90%+ cold air utilization, PUE reduced to 1.2-1.3. Cost-effective upgrade for traditional open data centers to support high-density servers.
10-500 kW (20ft/40ft)
Prefabricated all-in-one container (20ft/40ft), dustproof/anti-vibration, deployable outdoors. Liquid cooling optional for AI high-density computing (PUE ≤1.1), ideal for edge & temporary computing needs.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
