| Brand Name: | Soeteck |
| Model Number: | SYICDC40 |
| MOQ: | 1 |
| Price: | On Demand |
| Delivery Time: | 5-10 Weeks |
| Payment Terms: | L/C,D/A,D/P,T/T |

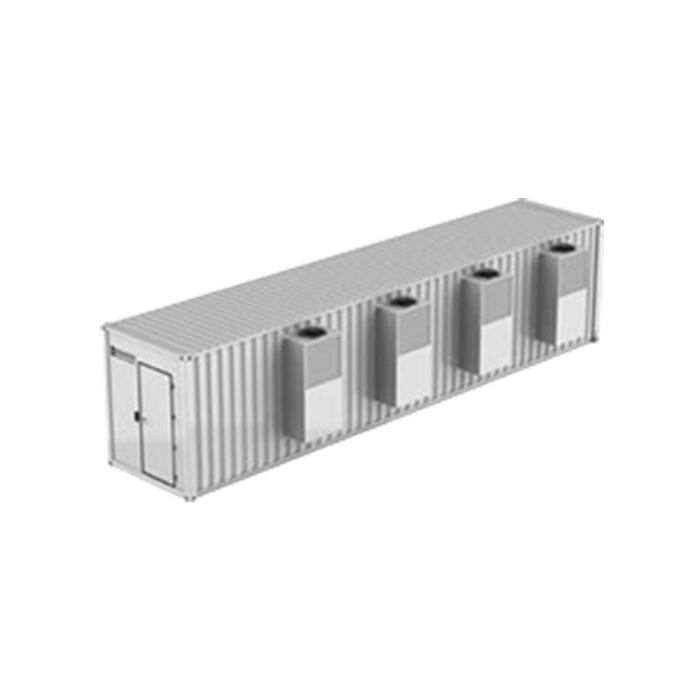

The 40ft Container Modular Data Center sets an industry benchmark for enterprise-grade modular data infrastructure. By encapsulating a full-scale data hall within a 40ft High Cube container, this Premium Quality solution enables businesses to deploy 72kW of IT capacity in just one day—eliminating the years-long construction cycles associated with traditional data centers and embodying true Rapid-Deploy capability.
Available in two configurations (Standard Type A and High-Density Type B), this modular data center integrates a fully redundant N+1 Modular UPS architecture and built-in fire suppression systems. It delivers Tier 3-level reliability characteristic of Premium Quality infrastructure, while retaining the speed and adaptability of a factory-manufactured modular product.
| Model | Cooling Architecture | Rack / Tank Count | Max Power Density | Total Capacity | Container Type | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| 20ft Immersion › | Single-Phase Immersion (Integrated FDU) |
4 Tanks | 100 kW / Tank | 400 kW | 20ft High Cube | 6058 x 2438 x 2896 mm |
| 40ft Immersion › | Single-Phase Immersion (Integrated FDU) |
12 Tanks | 100 kW / Tank | 1.2 MW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 40ft Cold Plate (In-Row) › | In-Row CDU (Liquid-to-Liquid / Air Assist) |
12 Racks (Space for CDUs) |
60 kW / Rack | 720 kW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 40ft Cold Plate (Rack) › | Rack-Mounted CDU (Distributed Manifold) |
14 Racks (Maximized Space) |
50 kW / Rack | 700 kW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 20ft Cold Plate (Rack) › | Rack-Mounted CDU (Distributed Manifold) |
5 Racks | 50 kW / Rack | 250 kW | 20ft High Cube | 6058 x 2438 x 2896 mm |
The ICDC40-Type B 40ft Container Modular Data Center comes pre-equipped with a 120kVA Modular UPS system and an intelligent 3-in-1 power distribution cabinet—fully wired and factory-tested for Premium Quality performance. This all-in-one design reduces space usage by 68% compared to on-site assembled electrical rooms, freeing up more space for revenue-driving server equipment and supporting Rapid-Deploy implementation.
Factory-integrated modularization ensures airtight sealing for our Cold/Hot Aisle Containment system—unlike on-site built solutions prone to leaks. Each module undergoes pressure testing to eliminate hotspots, and when paired with In-Row cooling, this Premium Quality engineering guarantees a PUE of 1.2, while also streamlining Rapid-Deploy workflows.
Focus on the core cooling demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
1-80 kW
High thermal conductivity, compact footprint, direct heat transfer, ideal for high-power electronic components.
10-80 kW
Uniform temperature control, zero dust intrusion, ideal for high-density data centers & supercomputers.
21.2-31.1 kW
No server room reconstruction, high heat rejection efficiency, plug-and-play installation, fits existing rack infrastructure.
20-1600 kW
Redundant fan design, low noise level, adjustable airflow, perfect for data centers & industrial cooling facilities.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
