| Brand Name: | Soeteck |
| Model Number: | SYICDC |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 5-10 Weeks |
| Payment Terms: | L/C,D/A,D/P,T/T |

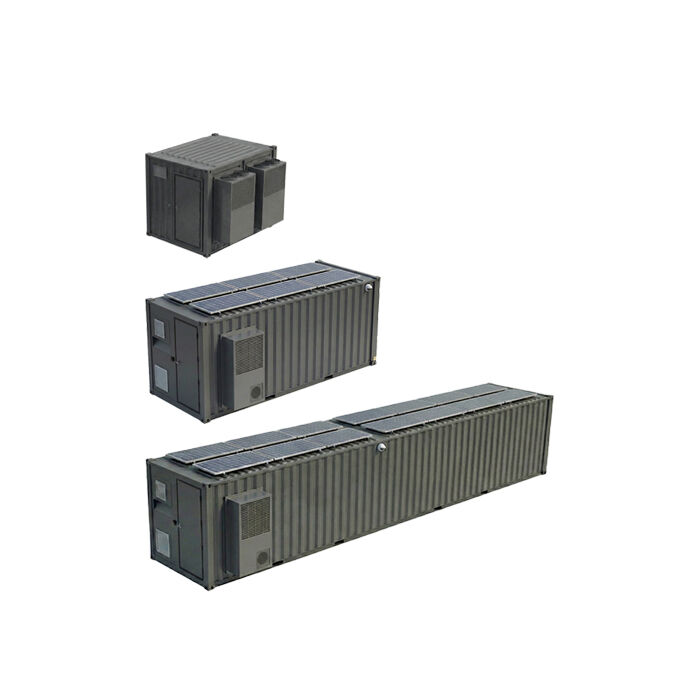

For projects where standard ISO containers simply do not fit, SOETECK offers Customized Non-Standard Container Data Centers. Whether you require extra width for wider server racks, spliced containers for massive internal halls, or reinforced plating for corrosive coastal areas, our R&D team can engineer a solution tailored to your exact specifications.
We move beyond "off-the-shelf." From altering the physical dimensions (e.g., 10ft mini-modules or extra-wide 3.5m units) to integrating specialized power inputs (380V/480V, 50Hz/60Hz) and advanced cooling options like Liquid Cooling for AI clusters, we ensure the infrastructure adapts to your business, not the other way around.
| Model No. | Container Size | Total Capacity | Rack Qty | Single Rack Load | UPS Configuration | Cooling |
|---|---|---|---|---|---|---|
| ICDC20 › | 20' HQ (ISO) | 54 KW | 9 Racks | Max 6 KW | 90 kVA Modular (N+1) | In-Row |
| ICDC40-A › | 40' HQ (ISO) | 24 KW | 4 Racks (Spacious) | Max 6 KW | 45 kVA Modular (N+1) | In-Row |
| ICDC40-B › | 40' HQ (ISO) | 72 KW | 12 Racks | Max 6 KW | 120 kVA Modular (N+1) | In-Row |
| Customized › | Non-Standard | Up to 500 KW | Flexible | Up to 20 KW+ | Custom Redundancy | In-Row / Liquid |
We support assembled cabinets and non-standard welding dimensions. Options include "Spliced" designs where multiple containers join to form a large server hall, or specialized anti-corrosion paint and 10-fold profile welded frames for oil rigs and maritime applications (C5-M corrosion standards).
Future-proof your infrastructure for AI and Crypto Mining. We offer customization for high-wattage racks (>20kW) using Direct-to-Chip liquid cooling or Immersion cooling integration, achieving PUE values below 1.1. We also customize voltage inputs for different global regions (e.g., US 480V vs EU 400V).
Tailored to diverse deployment scenarios—including small enterprise IT rooms, retrofitted traditional data centers and outdoor edge nodes—our modular data center solutions balance performance, cost and energy efficiency.
3-15 kW per Cabinet
All-in-one integrated cabinet design, plug-and-play deployment (1-3 days), remote intelligent monitoring. Ideal for edge endpoints like retail stores, ATMs and small enterprise IT rooms.
8-30 kW per Cabinet
Column-level prefabricated design, flexible expansion by rows, fits existing server rooms without major reconstruction. PUE 1.2-1.4, perfect for medium-density enterprise IT deployments.
15-40 kW per Cabinet
Airtight cold/hot aisle enclosure, 90%+ cold air utilization, PUE reduced to 1.2-1.3. Cost-effective upgrade for traditional open data centers to support high-density servers.
10-500 kW (20ft/40ft)
Prefabricated all-in-one container (20ft/40ft), dustproof/anti-vibration, deployable outdoors. Liquid cooling optional for AI high-density computing (PUE ≤1.1), ideal for edge & temporary computing needs.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
