| Brand Name: | Soeteck |
| Model Number: | SYICDC |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 5-10 Weeks |
| Payment Terms: | D/A,D/P,L/C,T/T |

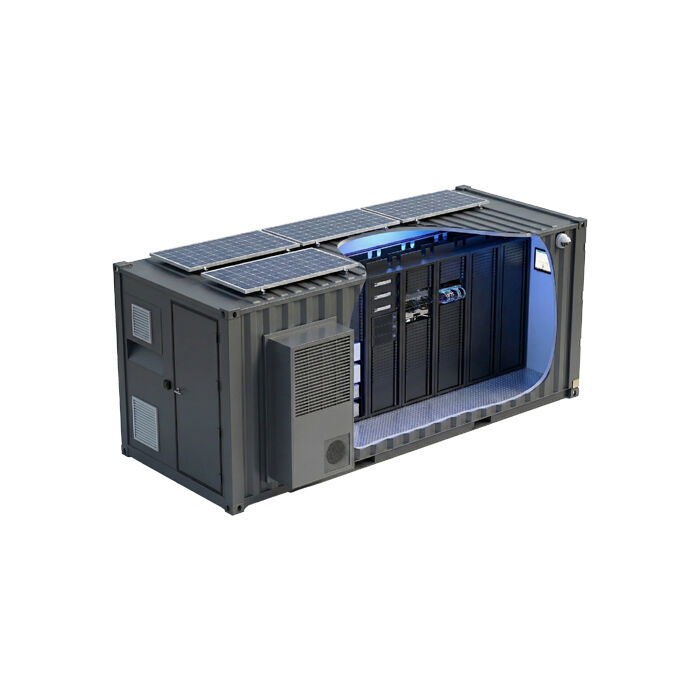

The SOETECK ICDC20 (20ft) Container Data Center is the ultimate solution for edge computing and remote infrastructure. Designed within a standard ISO 20ft High Cube footprint, it packs up to 54kW of IT capacity into a compact, transportable unit. It is specifically engineered for scenarios where space is limited but performance cannot be compromised, such as telecom base stations, mining sites, and smart city edge nodes.
Despite its compact size, the ICDC20 refuses to cut corners on reliability. It integrates a 90kVA Modular UPS (N+1) and precision in-row cooling to maintain optimal performance even in harsh outdoor environments (-40°C to 55°C). Its "Plug-and-Play" architecture allows for deployment on simple concrete pads, drastically reducing civil engineering costs and lead times.
| Model No. | Container Size | Total Capacity | Rack Qty | Single Rack Load | UPS Configuration | Cooling |
|---|---|---|---|---|---|---|
| ICDC20 › | 20' HQ (ISO) | 54 KW | 9 Racks | Max 6 KW | 90 kVA Modular (N+1) | In-Row |
| ICDC40-A › | 40' HQ (ISO) | 24 KW | 4 Racks (Spacious) | Max 6 KW | 45 kVA Modular (N+1) | In-Row |
| ICDC40-B › | 40' HQ (ISO) | 72 KW | 12 Racks | Max 6 KW | 120 kVA Modular (N+1) | In-Row |
| Customized › | Non-Standard | Up to 500 KW | Flexible | Up to 20 KW+ | Custom Redundancy | In-Row / Liquid |
Built strictly to ISO 20ft High Cube shipping standards, the ICDC20 requires no special logistics. It can be transported via standard container trucks, trains, or ships to any corner of the globe. This mobility makes it perfect for temporary events, disaster relief, or military applications.
Through intelligent engineering, we fit 9 Standard 42U Racks inside a 20ft footprint without sacrificing maintenance space. The In-Row cooling units are embedded directly between racks (Hot/Cold Aisle containment), achieving a PUE of 1.2 while supporting high-density loads up to 6kW per rack.
Tailored to diverse deployment scenarios—including small enterprise IT rooms, retrofitted traditional data centers and outdoor edge nodes—our modular data center solutions balance performance, cost and energy efficiency.
3-15 kW per Cabinet
All-in-one integrated cabinet design, plug-and-play deployment (1-3 days), remote intelligent monitoring. Ideal for edge endpoints like retail stores, ATMs and small enterprise IT rooms.
8-30 kW per Cabinet
Column-level prefabricated design, flexible expansion by rows, fits existing server rooms without major reconstruction. PUE 1.2-1.4, perfect for medium-density enterprise IT deployments.
15-40 kW per Cabinet
Airtight cold/hot aisle enclosure, 90%+ cold air utilization, PUE reduced to 1.2-1.3. Cost-effective upgrade for traditional open data centers to support high-density servers.
10-500 kW (20ft/40ft)
Prefabricated all-in-one container (20ft/40ft), dustproof/anti-vibration, deployable outdoors. Liquid cooling optional for AI high-density computing (PUE ≤1.1), ideal for edge & temporary computing needs.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
