| Brand Name: | Soeteck |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Payment Terms: | D/A |

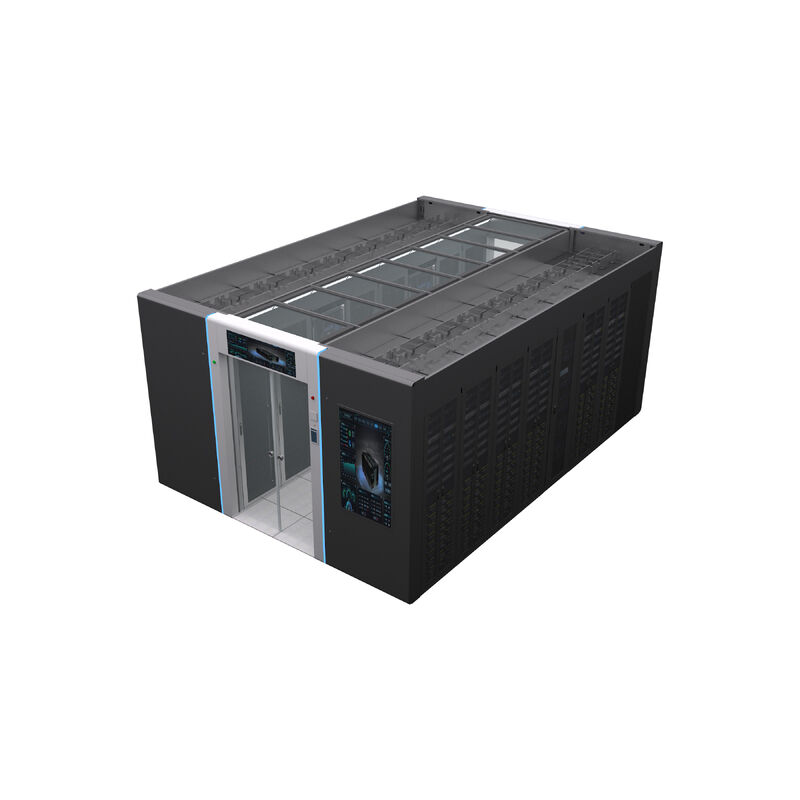

Optimize your IT infrastructure with our Aisle Modular Data Center Solutions. Designed for maximum flexibility and energy efficiency, our modular containment architecture overcomes strict architectural constraints by allowing precise configuration of up to 48 cabinets. This system features adjustable aisle widths and heights, making it the ideal choice for retrofitting irregular rooms or deploying high-density zones.
Achieve superior PUE levels through our advanced Cold/Hot Aisle Containment technology, which physically isolates airflows to eliminate hot spots. Our modular design supports a "pay-as-you-grow" model, seamlessly integrating In-Row Cooling, Chilled Water, or Direct-to-Chip Liquid Cooling modules to handle extreme power densities of up to 15kW+ per rack for AI and supercomputing workloads.
| Configuration | IT Cabinets | Power / Cab | UPS System | Cooling Capacity | Refrigeration Type | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| Plan 1 › | 12 Cabinets | 5 kW | 90K Rack Modular (15kVA modules, 4+1) |
25.5kW x 4 (3+1 Redundancy) |
In-Row AC | 4200 x 3600 x 2000 mm |
| Plan 2 › | 12 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
65.5kW x 2 (1+1 Redundant) |
In-Row AC | 4800 x 3600 x 2000 mm |
| Plan 3 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
71.1kW x 1 (N Redundancy) |
Room-Level AC | 4800 x 3600 x 2000 mm |
| Plan 4 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
Custom Capacity (Tailored) |
FAN WALL | 4800 x 3600 x 2000 mm |
| Plan 5 › | 18 Cabinets | 5 kW | Modular N+1 (25kVA modules, 4+1) |
31.1kW x 4 (3+1 Redundancy) |
In-Row AC | 6000 x 3600 x 2000 mm |
| Plan 6 › | 24 Cabinets | 5 kW | Modular N+1 (25kVA modules, 5+1) |
40.9kW x 4 (3+1 Redundancy) |
In-Row AC | 8400 x 3600 x 2000 mm |
| Custom › | ≤ 48 Cabinets | ≤ 15 kW | Max 500kVA (2N/N+1 Redundancy) |
Flexible Capacity (Row or Room) |
Air / Water / Chilled | Length ≤ 15000 mm |
Architectural Adaptability: Our modular system is designed for versatility. We customize aisle dimensions (up to 48 racks) to fit irregular room shapes, low ceilings, or existing columns, ensuring every square foot is utilized.
Optimized Airflow: The fully enclosed modular aisle containment physically separates cold and hot air streams, preventing recirculation and maximizing cooling efficiency for high-density IT loads.
Pay-as-You-Grow: Start with the capacity you need and easily expand. Our modular framework allows you to add cooling units and racks seamlessly as your business grows.
Future-Ready Integration: The modular racks are pre-engineered to support hybrid cooling architectures, combining traditional air cooling with liquid cooling loops to handle densities >15kW/rack.
Tailored to diverse deployment scenarios—including small enterprise IT rooms, retrofitted traditional data centers and outdoor edge nodes—our modular data center solutions balance performance, cost and energy efficiency.
3-15 kW per Cabinet
All-in-one integrated cabinet design, plug-and-play deployment (1-3 days), remote intelligent monitoring. Ideal for edge endpoints like retail stores, ATMs and small enterprise IT rooms.
8-30 kW per Cabinet
Column-level prefabricated design, flexible expansion by rows, fits existing server rooms without major reconstruction. PUE 1.2-1.4, perfect for medium-density enterprise IT deployments.
15-40 kW per Cabinet
Airtight cold/hot aisle enclosure, 90%+ cold air utilization, PUE reduced to 1.2-1.3. Cost-effective upgrade for traditional open data centers to support high-density servers.
10-500 kW (20ft/40ft)
Prefabricated all-in-one container (20ft/40ft), dustproof/anti-vibration, deployable outdoors. Liquid cooling optional for AI high-density computing (PUE ≤1.1), ideal for edge & temporary computing needs.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
