| Brand Name: | Soeteck |
| Model Number: | 1 |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 5-10 Weeks |
| Payment Terms: | D/A |

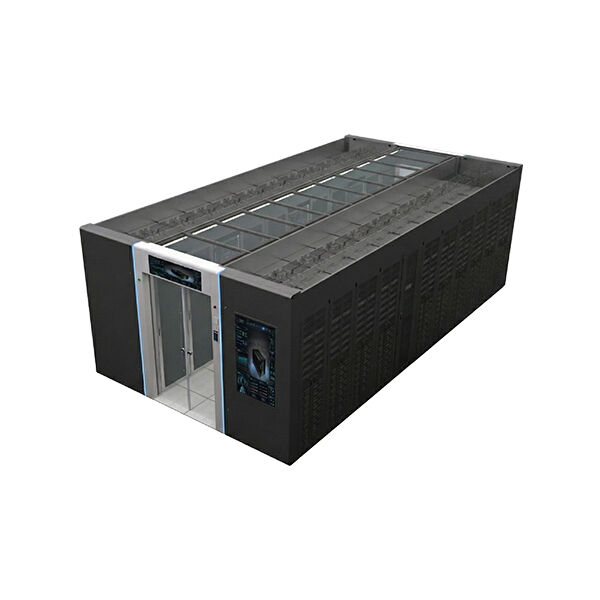

The 18-Rack Cold Aisle Containment Modular Data Center is the gold standard for medium-sized enterprise infrastructure. Designed to strike the perfect balance between footprint and capacity, this dual-row solution provides 17 usable IT cabinets within a 6-meter aisle, making it the preferred choice for corporate headquarters, banking centers, and government server rooms requiring robust data processing capabilities.
Unlike smaller edge units, this enterprise-grade module features an enhanced 3+1 Redundant In-Row Cooling architecture (31.1kW per unit) to handle sustained enterprise workloads. It integrates seamless power distribution and intelligent environmental monitoring into a standardized infrastructure that ensures business continuity with 99.999% reliability while reducing operational complexity for IT managers.
| Configuration | IT Cabinets | Power / Cab | UPS System | Cooling Capacity | Refrigeration Type | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| Plan 1 › | 12 Cabinets | 5 kW | 90K Rack Modular (15kVA modules, 4+1) |
25.5kW x 4 (3+1 Redundancy) |
In-Row AC | 4200 x 3600 x 2000 mm |
| Plan 2 › | 12 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
65.5kW x 2 (1+1 Redundant) |
In-Row AC | 4800 x 3600 x 2000 mm |
| Plan 3 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
71.1kW x 1 (N Redundancy) |
Room-Level AC | 4800 x 3600 x 2000 mm |
| Plan 4 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
Custom Capacity (Tailored) |
FAN WALL | 4800 x 3600 x 2000 mm |
| Plan 5 › | 18 Cabinets | 5 kW | Modular N+1 (25kVA modules, 4+1) |
31.1kW x 4 (3+1 Redundancy) |
In-Row AC | 6000 x 3600 x 2000 mm |
| Plan 6 › | 24 Cabinets | 5 kW | Modular N+1 (25kVA modules, 5+1) |
40.9kW x 4 (3+1 Redundancy) |
In-Row AC | 8400 x 3600 x 2000 mm |
| Custom › | ≤ 48 Cabinets | ≤ 15 kW | Max 500kVA (2N/N+1 Redundancy) |
Flexible Capacity (Row or Room) |
Air / Water / Chilled | Length ≤ 15000 mm |
N+1 Full Redundancy: Critical systems, including the 3+1 In-Row cooling array and modular UPS, operate with active redundancy to guarantee zero downtime for core banking and corporate workloads.
Fault Tolerance: The hot-swappable design allows modules to be replaced safely without interrupting system operations, meeting Tier III/IV maintenance standards.
Remote Management: Integrated DCIM software provides real-time visualization of PUE, temperature maps, and asset security via Web/App, eliminating the need for 24/7 on-site IT staff.
Multi-Branch Linkage: Supports MQTT/Modbus protocols to seamlessly integrate with headquarters' central monitoring systems for unified multi-site management.
Focus on the core cooling demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
5-30 kW per Cabinet
Airtight cold aisle enclosure, 90%+ cold air utilization rate, PUE ≤ 1.2, fast deployment and flexible expansion for medium-density IT loads.
10-80 kW Total Power
Prefabricated all-in-one design, anti-vibration & dust-proof, plug-and-play, ideal for edge computing and temporary computing demand scenarios.
30-100 kW per Cabinet
Hybrid air-liquid cooling, direct heat dissipation from GPU/CPU, AI-ready design, high power density with low energy consumption.
50-200 kW per Cabinet
Immersion cooling with dielectric fluid, 100x higher heat dissipation efficiency than air cooling, PUE ≤ 1.1, perfect for ultra-high density AI clusters.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
