| Brand Name: | Soeteck |
| Model Number: | SY-WCB66012W |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 30-45 working days |
| Payment Terms: | D/A |
The SY-WCB66012W is a 12U wall-mounted network cabinet measuring 600 x 600 x 635 mm, designed for small integrated wiring projects, smart communities and school IT rooms. Its IP20 enclosure gives edge switches, patch panels and compact UPS units a protected home where floor space is not available.
The WCB body is a single-section, cold-rolled steel box rated for a static load of 60KG. Standard 19-inch mounting columns run inside, and knock-out cable entries on the top and bottom can be opened to suit the cabling route. The body detaches from its wall-mounting frame, which keeps the shipping package compact and lets the frame be fixed to the wall first.
| Model No. | Type | Width (mm) | Depth (mm) | Height (mm) | Capacity (U) |
|---|---|---|---|---|---|
| SY-WCB64506W › | Standard | 600 | 450 | 368 | 6U |
| SY-WCB66012W › | Standard | 600 | 600 | 635 | 12U |
| SY-WCC65509B › | Swing-out | 600 | 550 | 501 | 9U |

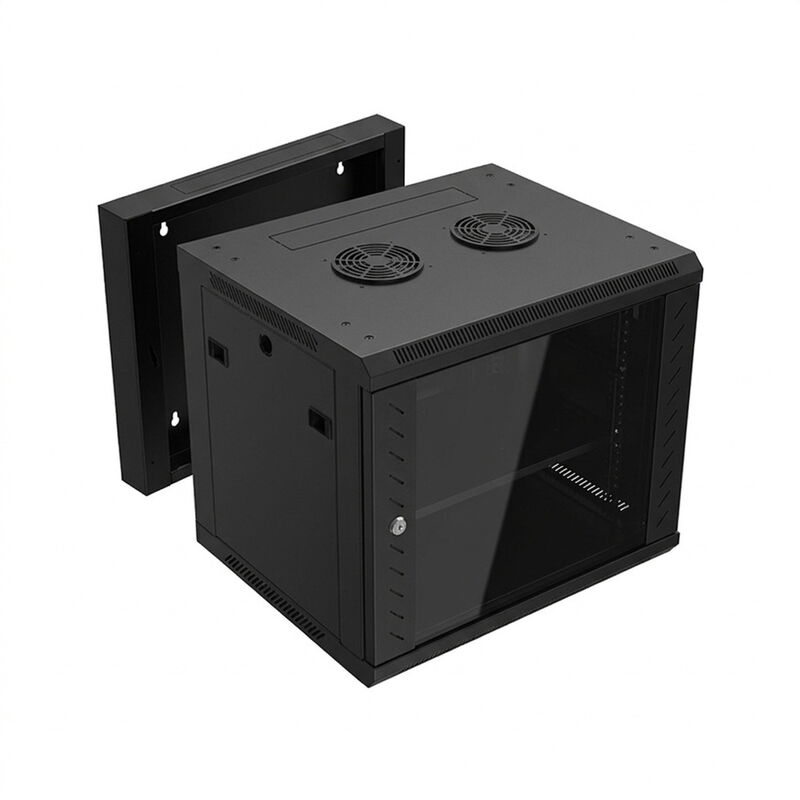

The top panel of the SY-WCB66012W carries two circular cooling-fan grilles and slotted vent bands, and the side panels add vertical vent arrays, so heat from the 12U of enclosed equipment leaves the 635 mm tall box instead of building up around the switch and patch panel.
The cabinet is split into a wall-mounting frame and the body. The frame is fixed to the wall first through its mounting holes, then the 600 x 600 x 635 mm body goes onto it; the two pieces stay separable, which keeps the transport package compact and makes later service access easier.
