| Brand Name: | Soeteck |
| Model Number: | SY-WCB64506W |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 30-45 working days |
| Payment Terms: | D/A |
The SY-WCB64506W is a compact 6U wall-mounted network cabinet measuring 600 x 450 x 368 mm, designed for small integrated wiring projects, smart communities and school IT rooms. Its IP20 enclosure keeps edge switches, patch panels and small power units protected where floor space is not available.
The WCB body is a single-section, cold-rolled steel box rated for a static load of 60KG. Standard 19-inch mounting columns run inside, and knock-out cable entries on the top and bottom can be opened to suit the cabling route. The body detaches from its wall-mounting frame, which keeps the shipping package compact and lets the frame be fixed to the wall first.
| Model No. | Type | Width (mm) | Depth (mm) | Height (mm) | Capacity (U) |
|---|---|---|---|---|---|
| SY-WCB64506W › | Standard | 600 | 450 | 368 | 6U |
| SY-WCB66012W › | Standard | 600 | 600 | 635 | 12U |
| SY-WCC65509B › | Swing-out | 600 | 550 | 501 | 9U |

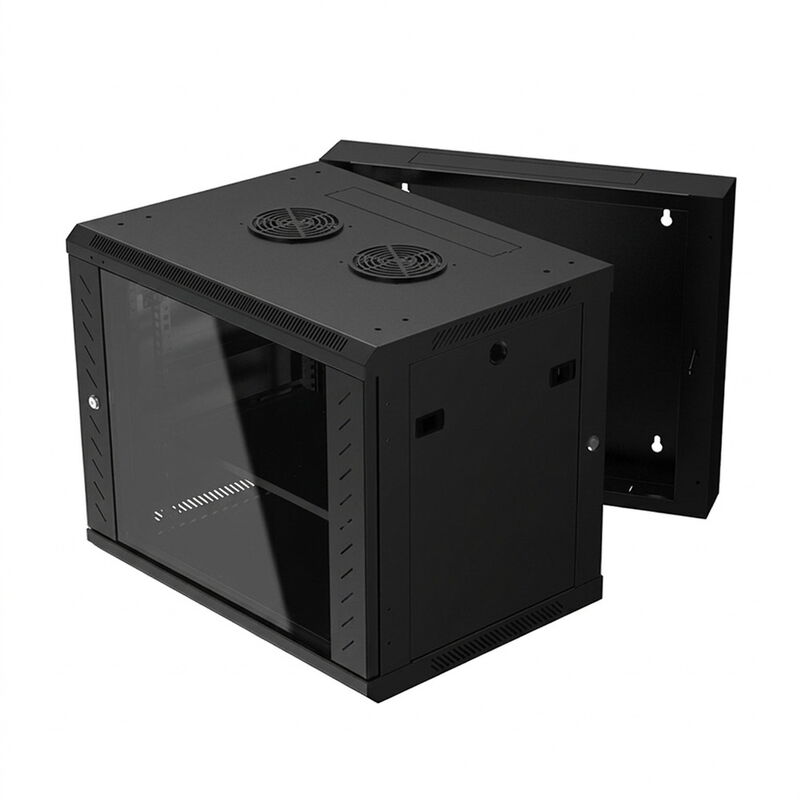

The top panel of the SY-WCB64506W carries two circular cooling-fan grilles and a pair of slotted vent bands, and the side panels add vertical vent arrays, so heat from the 6U of enclosed equipment leaves the box instead of building up around the switch and patch panel.
The cabinet is split into a wall-mounting frame and the body. The frame is fixed to the wall first through its mounting holes, then the 600 x 450 x 368 mm body goes onto it; the two pieces stay separable, which keeps the transport package compact and makes later service access easier.
