| Brand Name: | Soeteck |
| Model Number: | SY-SCM60942W |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 30-45 working days |
| Payment Terms: | D/A |

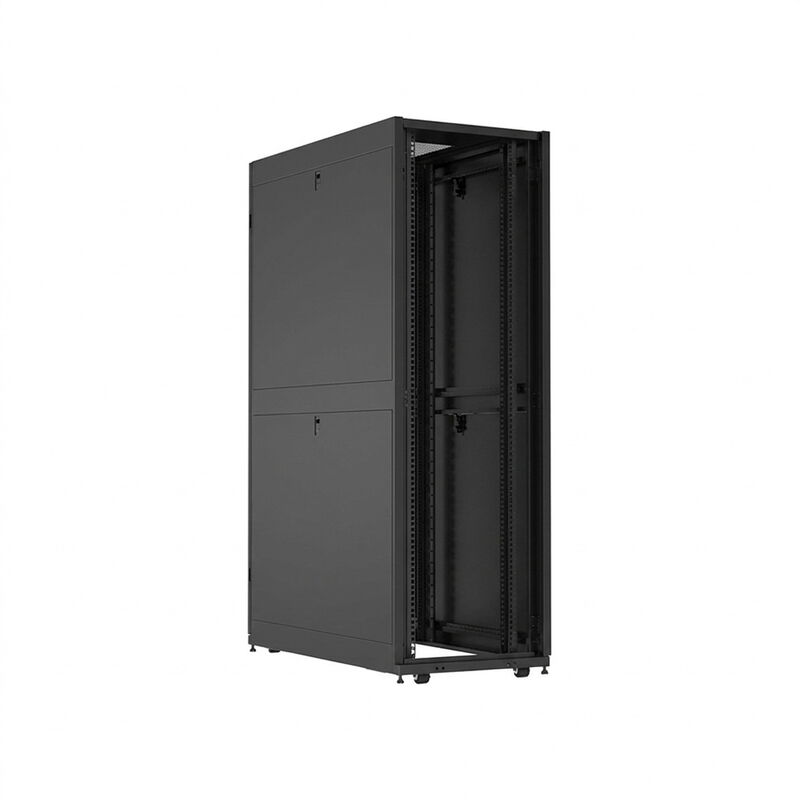

The SY-SCM60942W is a 42U flat-pack server rack cabinet measuring 600 x 900 x 2032 mm, engineered for data centers and mission-critical IT equipment. Built on the SCM series G-shaped column frame, it carries a static load of at least 1800KG, and its four 19-inch mounting posts accept standard rack equipment through the full 42U of usable height.
Designed with global logistics in mind, the cabinet ships knocked down. The split-style flat pack cuts transport volume by 50% against a fully assembled unit, which keeps sea freight down on overseas projects, and one person can complete the on-site assembly from the supplied guide.
| Model No. | Width (mm) | Depth (mm) | Height (mm) | Capacity (U) | Load Bearing |
|---|---|---|---|---|---|
| SY-SCM60942W › | 600 | 900 | 2032 | 42U | ≥1800 KG |
| SY-SCM61142W › | 600 | 1100 | 2032 | 42U | ≥1800 KG |
| SY-SCM61247W › | 600 | 1200 | 2210 | 47U | ≥1800 KG |
| SY-SCM81242W › | 800 | 1200 | 2032 | 42U | ≥1800 KG |
On the SY-SCM60942W the front and rear doors are cut with circular plum blossom-shaped mesh that keeps the open area above 75%, so all 42U of the 2032 mm cabinet height stays ventilated for high-density servers. The rear door opens in two leaves, which keeps maintenance access workable even in a narrow aisle.
The cabinet is built from split, knock-down panels and ships as a compact flat pack. That cuts transport volume by 50% against a fully assembled 600 x 900 x 2032 mm cabinet, which is what keeps sea freight affordable on overseas projects, and one person can assemble the whole frame on site.
Focus on the core power delivery demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
Reliable & Cost-Effective
Robust rack-mount power distribution featuring 2.00mm thick profiles and high-purity red copper bars. Ensures low temperature rise (<3°C) and superior structural stability for general IT equipment.
Customized / 0U Vertical
Tailored for high-density environments with customized vertical 0U installation. Features high-power air circuit breakers and hot-swappable modules to support flexible and safe power expansion.
Networked / Monitored
Advanced Smart-K series for remote management. Monitors voltage, current, and energy in real-time while integrating environmental sensors (temp/humidity) to optimize PUE and ensure mission-critical uptime.
Intelligent / Centralized
Intelligent Power Distribution Cabinets designed for modular data centers. Integrates precision circuit monitoring, isolation transformers, and smart management for central power control and safety.
From remote outdoor fields to high-density AI computing centers, our prefabricated and modular designed data center solutions deliver rapid deployment and optimal PUE across diverse industries.
