| Brand Name: | Soeteck |
| Model Number: | 1 |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 5-10 Weeks |
| Payment Terms: | D/A,L/C,D/P,T/T |

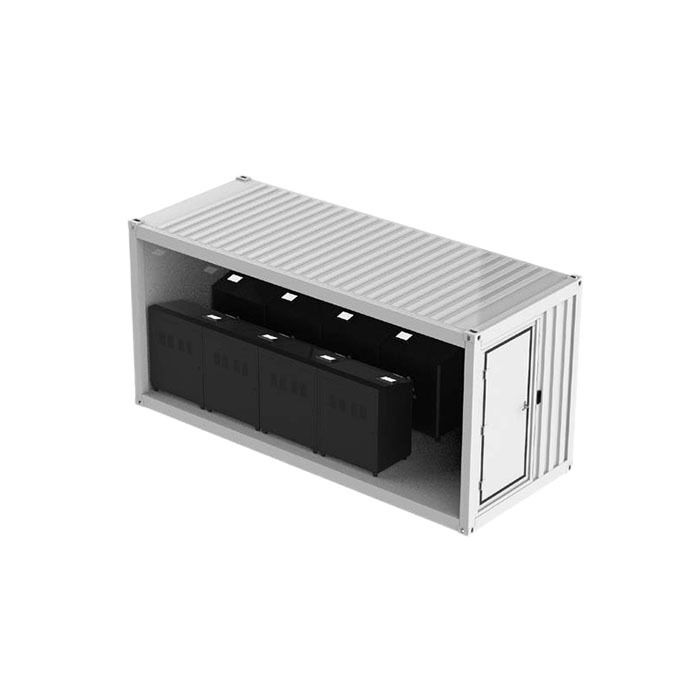

The 20ft Cold Plate Rack-Mounted CDU Prefabricated Data Center 5 Racks 250 kW 20ft High Cube is a fully prefabricated high-density data center solution designed to deliver robust computing power instantly. Engineered within a standardized 20ft ISO High Cube footprint (maximizing vertical space), this factory-assembled unit integrates 5 dedicated server racks and delivers up to 250 kW of IT capacity via advanced cold plate liquid cooling technology, eliminating the need for complex on-site cooling installation and permanent structures at edge or enterprise sites.
By leveraging prefabrication, this high-density solution arrives fully integrated with rack-mounted CDU (Cooling Distribution Unit), redundant power systems, and precision cold plate liquid cooling. It serves as a reliable data center solution for high-performance computing (HPC), AI inference, telecom core networks, and industrial IoT hubs, ensuring that critical high-power infrastructure can be deployed, moved, and operationalized with minimal site preparation—all within the compact 20ft High Cube form factor supporting 5 optimized racks.
| Model | Cooling Architecture | Rack / Tank Count | Max Power Density | Total Capacity | Container Type | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| 20ft Immersion › | Single-Phase Immersion (Integrated FDU) |
4 Tanks | 100 kW / Tank | 400 kW | 20ft High Cube | 6058 x 2438 x 2896 mm |
| 40ft Immersion › | Single-Phase Immersion (Integrated FDU) |
12 Tanks | 100 kW / Tank | 1.2 MW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 40ft Cold Plate (In-Row) › | In-Row CDU (Liquid-to-Liquid / Air Assist) |
12 Racks (Space for CDUs) |
60 kW / Rack | 720 kW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 40ft Cold Plate (Rack) › | Rack-Mounted CDU (Distributed Manifold) |
14 Racks (Maximized Space) |
50 kW / Rack | 700 kW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 20ft Cold Plate (Rack) › | Rack-Mounted CDU (Distributed Manifold) |
5 Racks | 50 kW / Rack | 250 kW | 20ft High Cube | 6058 x 2438 x 2896 mm |
The true value of prefabrication is mobility. Because all systems are secured and tested in the factory, the ICDC20 acts as a portable asset. It complies with global shipping standards, allowing you to transport your entire data center infrastructure by truck or ship to wherever the edge moves.
Our factory engineers maximize every inch of the 20ft module. We fit 9 Standard 42U Racks with integrated In-Row cooling and containment. This level of precision engineering is only possible through prefabrication, ensuring PUE values of 1.2 even in a compact footprint.
Focus on the core cooling demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
3-15 kW per Cabinet
All-in-one integrated cabinet design, plug-and-play deployment (1-3 days), remote intelligent monitoring. Ideal for edge endpoints like retail stores, ATMs and small enterprise IT rooms.
8-30 kW per Cabinet
Column-level prefabricated design, flexible expansion by rows, fits existing server rooms without major reconstruction. PUE 1.2-1.4, perfect for medium-density enterprise IT deployments.
15-40 kW per Cabinet
Airtight cold/hot aisle enclosure, 90%+ cold air utilization, PUE reduced to 1.2-1.3. Cost-effective upgrade for traditional open data centers to support high-density servers.
10-500 kW (20ft/40ft)
Prefabricated all-in-one container (20ft/40ft), dustproof/anti-vibration, deployable outdoors. Liquid cooling optional for AI high-density computing (PUE ≤1.1), ideal for edge & temporary computing needs.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
