| Brand Name: | Soeteck |
| Model Number: | MDC |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 5-10 Weeks |
| Payment Terms: | L/C,D/A,D/P,T/T |

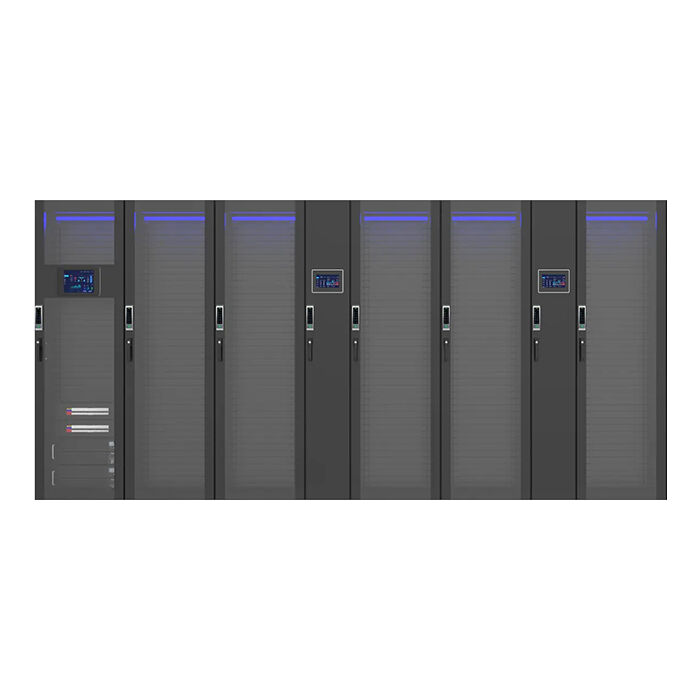

Elevate your infrastructure with our Row Modular Data Center (In-Row Cooling Series). Unlike standard micro-modules, this solution employs dedicated In-Row Air Conditioners integrated directly between server cabinets. This architecture drastically shortens the airflow path, allowing for superior heat handling capabilities suitable for high-density computing.
By combining high-capacity In-Row cooling with a fully enclosed cabinet architecture, it establishes a precise internal airflow circulation. This is the definitive solution for medium-to-large enterprises needing to deploy high-performance clusters (30kW-60kW+) with ultra-low PUE, without relying on external aisle containment structures.
| Solution Type | Cooling Mode | Cooling Capacity | Cabinet Config | Max IT Load | PUE Rating |
|---|---|---|---|---|---|
| Standard Single (Rack AC) › | Rack-mounted PAC | 3.5 kW - 7.5 kW | 1 Cabinet (Integrated) | 3 - 6 kW | ≤ 1.4 |
| High-Density Single (In-Row) › | In-Row Cooling | 12.5 kW - 25 kW | 1 IT Cabinet + Cooling Unit | > 10 kW | ≤ 1.3 |
| Modular Row (Rack AC) › | Rack-mounted PAC | 7.5 kW - 12.5 kW | 2 - 3 Cabinets (Expandable) | 6 - 15 kW | ≤ 1.35 |
| High-Perf Row (In-Row) › | In-Row Level | 25 kW - 60 kW+ | 4+ Cabinets (N+1 Redundancy) | 24 - 36 kW+ | ≤ 1.25 |
By decoupling cooling from the rack interior, this solution supports extreme power densities of 10kW to 20kW+ per cabinet. It ensures 100% usable U-space for servers, providing the thermal stability required for intensive AI training and High-Performance Computing (HPC) tasks.
The system features an IP5X rated fully sealed design that isolates the internal environment from external dust and noise. It supports N+1 redundancy for both power and cooling modules, ensuring Tier 3 level reliability for mission-critical operations.
Tailored to diverse deployment scenarios—including small enterprise IT rooms, retrofitted traditional data centers and outdoor edge nodes—our modular data center solutions balance performance, cost and energy efficiency.
3-15 kW per Cabinet
All-in-one integrated cabinet design, plug-and-play deployment (1-3 days), remote intelligent monitoring. Ideal for edge endpoints like retail stores, ATMs and small enterprise IT rooms.
8-30 kW per Cabinet
Column-level prefabricated design, flexible expansion by rows, fits existing server rooms without major reconstruction. PUE 1.2-1.4, perfect for medium-density enterprise IT deployments.
15-40 kW per Cabinet
Airtight cold/hot aisle enclosure, 90%+ cold air utilization, PUE reduced to 1.2-1.3. Cost-effective upgrade for traditional open data centers to support high-density servers.
10-500 kW (20ft/40ft)
Prefabricated all-in-one container (20ft/40ft), dustproof/anti-vibration, deployable outdoors. Liquid cooling optional for AI high-density computing (PUE ≤1.1), ideal for edge & temporary computing needs.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
