| Brand Name: | Soeteck |
| Model Number: | 1 |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 5-10 Weeks |
| Payment Terms: | L/C,D/A,D/P,T/T |

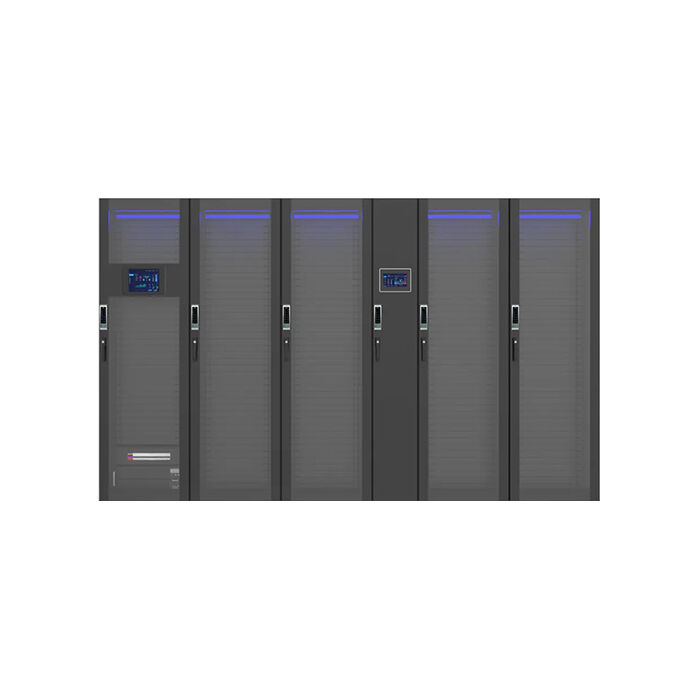

The Future-Ready Single Row Micro Data Center is a highly integrated data center solution featuring completely isolated cold and hot aisles combined with efficient In-Row cooling. Offering flexible configurations from 3 to 16 cabinets, it perfectly balances high power density with green energy efficiency.
With a PUE typically below 1.4, this modular micro data center system reduces energy consumption by over 25% compared to traditional open aisle layouts. It supports N+X redundancy for both power and cooling, making it the ideal data center solution for mission-critical medium-sized server rooms.
| Model No. | Configuration | UPS Capacity | Cooling Type | Cooling Capacity | Dimensions (WxDxH) |
|---|---|---|---|---|---|
| MDC-SRK › | Single Cabinet | 3 - 6 kVA | Rack-Mounted AC | 3.5 kW | 600 x 1200 x 2000 mm |
| MDC-SRW › | Single Cabinet | 6 - 10 kVA | In-Row Level | High Density | 600 x 1200 x 2000 mm |
| MDC-RRK › | 2 - 16 Cabinets | 10 - 20 kVA | Rack-Mounted AC | 7.5 - 12.5 kW | 1200/1800 x 1200 x 2000 mm |
| MDC-RRW › | 2 - 16 Cabinets | 30 - 60+ kVA | In-Row Cooling | 12.5 - 60.5 kW | 3000+ x 1200 x 2000 mm |
Physically separates cold and hot air streams using a sealed containment system. This maximizes cooling efficiency within the micro data center by preventing air mixing, allowing for higher return air temperatures and significantly lower operating costs.
Built-in redundancy (N+1) for power and cooling ensures continuous operation, which is critical for any reliable data center solution. The intelligent linkage system automatically pops doors open for heat dissipation in case of emergency.
Our micro data center solutions are engineered to address the cooling challenges of high-density IT deployments, delivering energy-efficient, scalable, and reliable operation for edge computing, enterprise, and AI-driven data center environments.
PUE ≤ 1.2 | Edge Ready
Integrated rack-level cooling with high thermal conductivity, compact design for edge computing & high-power electronics.
25 kW/Cabinet | IP54
In-row precision cooling with dust-free operation, ideal for high-density data centers, ready for future scaling with modular expansion capability.
8-12 Cabinets/Row | Plug & Play
Plug-and-play row-level modular design, high heat rejection efficiency with no server room renovation needed.
30+ kW/Cabinet | N+1 Redundancy
Embedded in-row cooling with N+1 redundancy, low noise & adjustable airflow for high density computing.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
