| Brand Name: | Soeteck |
| Model Number: | SY-RT |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 2-4W |
| Payment Terms: | D/A |

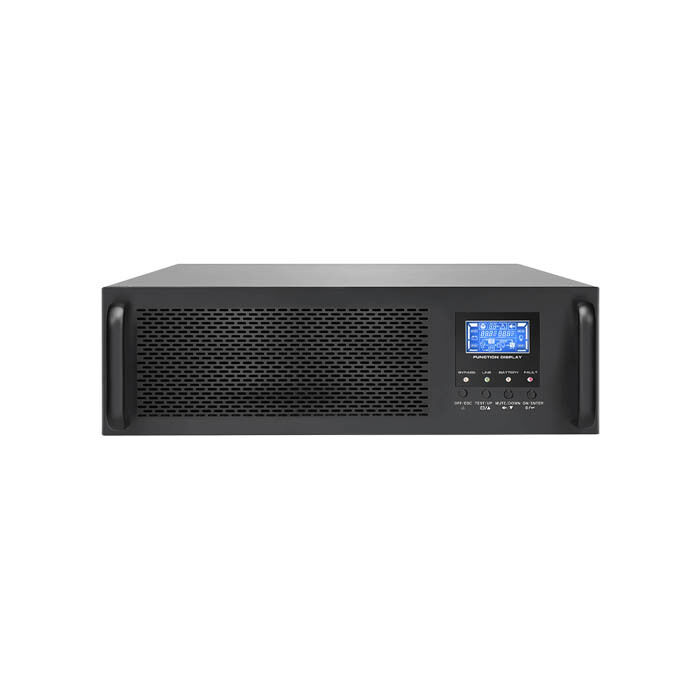

1kVA-10kVA Customizable Voltage Online UPS, High frequency
For small and medium-sized critical application scenarios—such as data centers, server rooms, and communication systems—the Customizable Voltage Online UPS provides reliable and efficient power protection by adopting advanced true double conversion technology. Designed to fit the needs of these scale scenarios, it supports both rack and tower installation modes, enabling flexible deployment and optimal use of space.
With a 0.8 power factor, this UPS delivers more usable power, fully compatible with modern IT and critical systems. Boasting up to 93% output efficiency, it cuts energy loss and operational costs while maintaining steady performance. Its 110-300V wide input range and low THDi shield sensitive devices from power fluctuations and harmonic interference. Optional battery packs (paired with 6A high-efficiency charging) extend critical load runtime, and true double conversion + ECO mode ensure continuous, clean, reliable power for connected equipment.
| Model No. | System Capacity | Input Voltage | Output Voltage | Efficiency | Wiring |
|---|---|---|---|---|---|
| SYRT-T101 › | 1000VA / 800W | Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC | Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC | 88% - 93% (AC mode); 83% - 91% (Battery mode) | 1 phase + PE |
| SYRT-T102 › | 2000VA / 1600W | Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC | Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC | 88% - 93% (AC mode); 83% - 91% (Battery mode) | 1 phase + PE |
| SYRT-T103 › | 3000VA / 2400W | Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC | Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC | 88% - 93% (AC mode); 83% - 91% (Battery mode) | 1 phase + PE |
| SYRT-T106 › | 6000VA / 4800W | Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC | Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC | 88% - 93% (AC mode); 83% - 91% (Battery mode) | 1 phase + PE |
| SYRT-T110 › | 10000VA / 8000W | Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC | Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC | 88% - 93% (AC mode); 83% - 91% (Battery mode) | 1 phase + PE |
Compatible with both rack-mounted deployment (matching standard server racks) and standalone tower placement, this UPS is ideal for server rooms, IT infrastructure areas with limited space, and small to medium-sized communication equipment rooms, adapting to diverse installation environments.
The 0.8 power factor ensures more effective power utilization for connected devices, while the maximum 93% output efficiency significantly cuts down energy waste and lowers long-term operational costs for users.
Equipped with true double conversion technology, it provides 100% clean and stable power. It features 0ms transfer time from utility to battery mode and 4ms transfer time from inverter to bypass mode, preventing power interruptions and protecting critical equipment from damage.
Comprehensive LCD/LED display shows real-time operating status like voltage, load rate and working mode. It supports RS232, USB and optional SNMP for remote monitoring, making it easy to manage the UPS status anytime and anywhere.
With diverse UPS series spanning industrial-grade resilience, highly scalable modularity, and smart space-efficient designs, Soeteck delivers fully personalized, industry-leading high-availability power solutions to safeguard all critical electronics with unwavering reliability.
1-60 kVA
rack/tower convertible, space-saving, cost-effective, suitable for small-to-medium devices.
1-600 kVA
3-phase unbalance allowed, high overload, ideal for critical industrial & healthcare scenarios.
1-1200 kVA
high-frequency, wide input range, high integration, fits small server rooms to large facilities.
20-1600 kVA
hot-swappable modules, N+X redundancy, flexible expansion for dynamic load demands.
