| Brand Name: | Soeteck |
| Model Number: | Extended 47U |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 30-45 working days |
| Payment Terms: | D/A |
The Extended 47U Liquid Cooling Cabinet is the tall configuration of our cold-plate cabinet platform. It keeps the narrow footprint of the baseline rack - 600 mm wide and 1200 mm deep - but raises the steel frame to 2200 mm high, which frees a full 47U of mounting space for accelerator trays and the coolant manifolds that feed them.

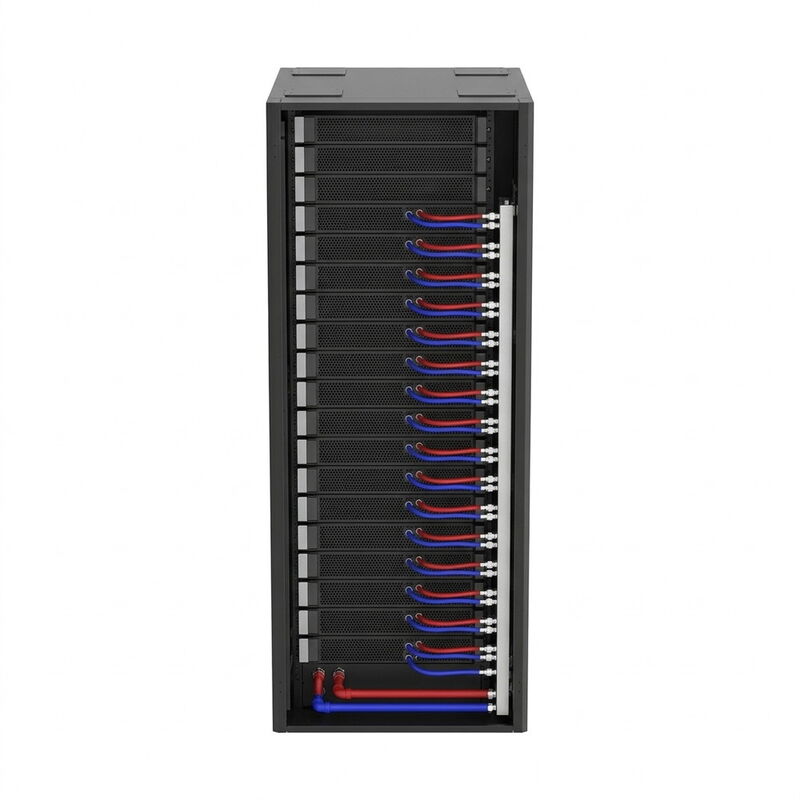

The cabinet body, manifold pipelines, power distribution system and exchange board are pre-integrated into one unit, so no on-site assembly is needed. Each server tray links to the vertical manifold through quick-disconnect liquid cooling hoses, and the rack accepts both upwards and downwards pipe routing. A leakage alarm with a bottom water tray guards the coolant loop at all times.
| Configuration | Width (W) | Depth (D) | Height (H) | Installation Space |
|---|---|---|---|---|
| Standard 42U | 600 mm | 1200 mm | 2000 mm | 42 U |
| Extended 47U | 600 mm | 1200 mm | 2200 mm | 47 U |
| Wide 42U | 800 mm | 1200 mm | 2000 mm | 42 U |
| Wide 47U | 800 mm | 1200 mm | 2200 mm | 47 U |
The Extended 47U model keeps the 600 mm wide and 1200 mm deep frame of the baseline cabinet but raises it to 2200 mm high, which yields a full 47U of mounting space - five more U for tall accelerator trays and the coolant manifolds above them. Each server tray connects to the vertical manifold with a pair of quick-disconnect hoses, and the rack accepts both upwards and downwards pipe routing to match the layout of your room. A dual power supply system keeps the manifold and the IT load running through a single-source failure.
Coolant safety is engineered into the chassis rather than added on site. A leakage alarm and a dedicated water tray sit at the base of the cabinet, giving continuous monitoring and containment for the coolant loop. Power distribution and the exchange board are already fitted inside the 47U frame, so the taller rack arrives ready for internal equipment and the connection interfaces are in place before the first server is slid in.
