| Brand Name: | Soeteck |
| Model Number: | SYM1000 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 30-45 working days |
| Payment Terms: | D/A |

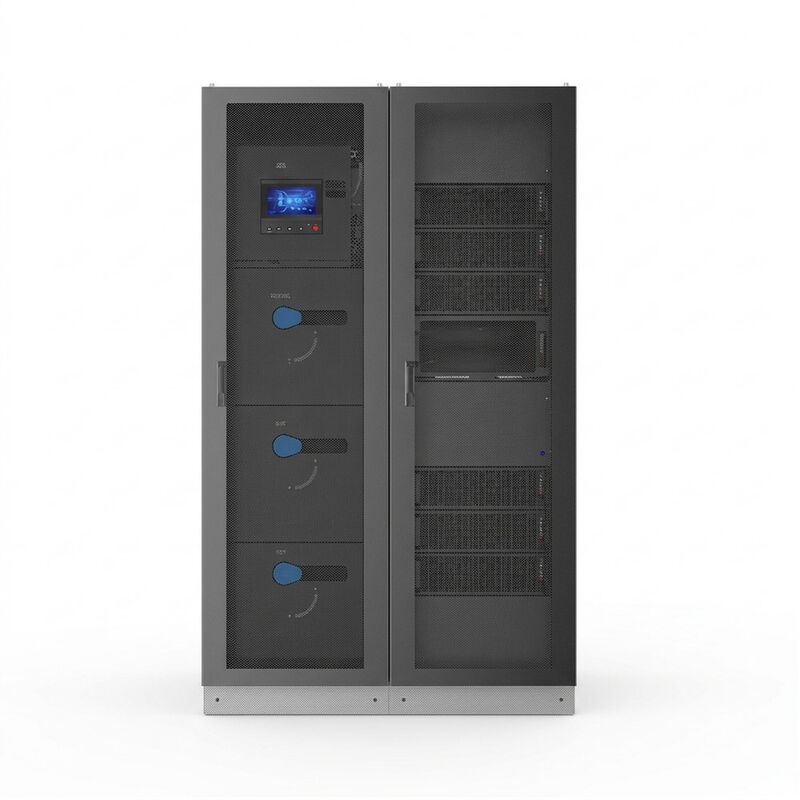

The Soeteck SYM1000 Modular UPS protects 1000 kVA of critical load with ten 100 kVA hot-swappable power modules in a single frame. Capacity is set by the number of modules rather than by the size of a monolithic UPS, so a data hall can be commissioned at its initial load and grown module by module as racks are added — without an outage and without scrapping the original machine.
Three-level inversion and IGBT rectification keep efficiency at 96% or above, reaching 99% in ECO mode, with input distortion below 3% THDi and an input window of 138-485 VAC for unstable grids. The system rides through 110% load for 60 minutes and 150% for one minute, and reports module status, load rate and battery health to a touchscreen on the cabinet as well as to a BMS over RS232, RS485, MODBUS or SNMP.
| Model No. | System Capacity | Module Power | Input Voltage | Output Voltage | Efficiency | Wiring |
|---|---|---|---|---|---|---|
| SYM400 › | 400kVA | 100kVA × 4 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM500 › | 500kVA | 100kVA × 5 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM600 › | 600kVA | 100kVA × 6 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM800 › | 800kVA | 100kVA × 8 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1000 › | 1000kVA | 100kVA × 10 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1100 › | 1100kVA | 100kVA × 11 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1200 › | 1200kVA | 100kVA × 12 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1300 › | 1300kVA | 100kVA × 13 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1400 › | 1400kVA | 100kVA × 14 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1500 › | 1500kVA | 100kVA × 15 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1600 › | 1600kVA | 100kVA × 16 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
The SYM1000 is built from ten 100 kVA hot-swappable power modules in a single frame, so 1000 kVA of protected load is available without a monolithic transformer-style UPS in the room. Modules can be added, replaced or moved to bypass while the load keeps running, and because each module works independently there is no single point that takes the whole system down.
Three-level inversion and IGBT rectification hold efficiency at 96% or better across the normal operating range, rising to 99% when the system drops into ECO mode on a stable grid. Input current distortion stays below 3% THDi, so the rectifier does not push harmonics back into the building supply and the losses that would otherwise show up as heat have to be removed by the cooling system.
The system carries 110% of rated load for 60 minutes and 150% for one minute, then transfers to bypass rather than tripping when the demand goes beyond that — enough ride-through for the inrush of a row of servers starting at once. The rectifier accepts 138-485 VAC input (linear derating over 138-323 VAC, full power from 324-485 VAC), so a weak or wandering grid does not immediately put the site on battery.
A touchscreen on the module bay shows module status, load percentage and battery health at the cabinet, while RS232, RS485, MODBUS and SNMP let the same data reach a BMS or DCIM over the network. Fault history is kept in the controller, so an operator can see which module dropped and when instead of reconstructing the event from alarms.
