| Brand Name: | Soeteck |
| Model Number: | Standard 42U |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 30-45 working days |
| Payment Terms: | D/A |

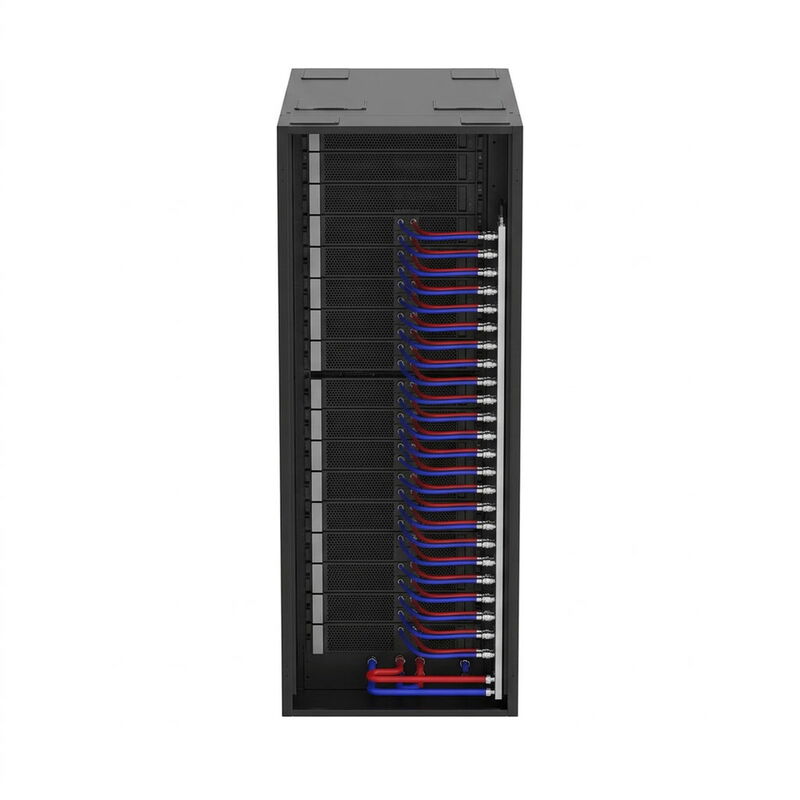

The Standard 42U Liquid Cooling Cabinet is the baseline configuration of our cold-plate cabinet platform. Its steel frame measures 600 mm wide, 1200 mm deep and 2000 mm high, yet it still offers a full 42U of mounting space, so a single narrow rack can carry a high-density cold-plate payload without widening the white space of your room.
The cabinet body, manifold pipelines, power distribution system and exchange board are pre-integrated into one unit, so no on-site assembly is needed. Each server tray links to the vertical manifold through quick-disconnect liquid cooling hoses, and the rack accepts both upwards and downwards pipe routing. A leakage alarm with a bottom water tray guards the coolant loop at all times.
| Configuration | Width (W) | Depth (D) | Height (H) | Installation Space |
|---|---|---|---|---|
| Standard 42U | 600 mm | 1200 mm | 2000 mm | 42 U |
| Extended 47U | 600 mm | 1200 mm | 2200 mm | 47 U |
| Wide 42U | 800 mm | 1200 mm | 2000 mm | 42 U |
| Wide 47U | 800 mm | 1200 mm | 2200 mm | 47 U |
The Standard 42U model is built on a 600 mm wide, 1200 mm deep and 2000 mm high steel frame that still offers a full 42U of mounting space, so a single narrow cabinet can carry a high-density cold-plate payload. Each server tray connects to the vertical manifold with a pair of quick-disconnect hoses, and the rack accepts both upwards and downwards pipe routing to match the layout of your room. A dual power supply system keeps the manifold and the IT load running through a single-source failure.
Coolant safety is engineered into the chassis rather than added on site. A leakage alarm and a dedicated water tray sit at the base of the cabinet, giving continuous monitoring and containment for the coolant loop. Power distribution and the exchange board are already fitted inside the 42U frame, so the rack arrives ready for internal equipment and the connection interfaces are in place before the first server is slid in.
Focus on the core cooling demands of high-density data center deployments, where our full range of liquid cooling products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
In-Rack / In-Row / In-Room
The heart of liquid cooling. Available in Rack-mounted (50-80kW), In-Row (350-900kW), and large-scale In-Room (up to 2MW) configurations. Features N+1 redundancy and smart control.
PUE < 1.2
Single-phase immersion technology for ultimate heat dissipation. Integrated plug-and-play design suitable for edge nodes and high-density clusters. Silent operation with PUE < 1.2.
Prefab & Modular
Rapid-deployment modular data center. A turnkey solution integrating power, liquid cooling (Cold Plate or Immersion), and monitoring. Ideal for AI training and crypto mining.
High-Quality
Essential components for safety and efficiency. Includes high-precision Manifolds, flexible Secondary Loops, and Quick Disconnects (QD) with leak-prevention design.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
