| Brand Name: | Soeteck |
| Model Number: | 1 |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 5-10 Weeks |
| Payment Terms: | D/A,L/C,D/P,T/T |

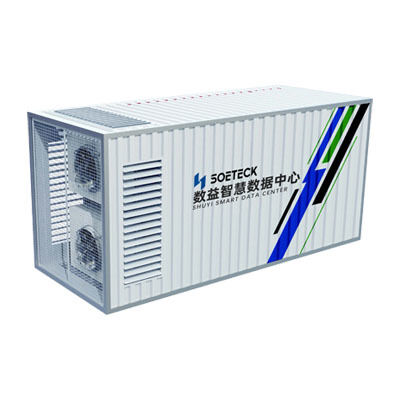

For businesses aiming to cut energy costs and meet sustainability targets without compromising computing performance, the Ultra-Energy-Saving Prefabricated Data Center: Powered by Indirect Evaporative Cooling sets a new standard for green data center infrastructure. Its innovative cooling technology eliminates the high energy consumption of traditional mechanical refrigeration systems, making it the ideal choice for regions with dry climates and enterprises pursuing carbon-neutral operations.
This eco-friendly prefabricated solution leverages indirect evaporative cooling to achieve an ultra-low PUE of 1.12–1.18—far below the industry average of 1.5. The closed-loop cooling design prevents outside air contaminants from entering the IT space, reducing equipment wear and extending hardware lifespan by 20%. It integrates intelligent temperature control that automatically switches between free cooling and auxiliary cooling modes based on ambient conditions, maximizing energy savings. With plug-and-play deployment and a 35% reduction in annual energy costs compared to air-cooled data centers, it delivers a sustainable, cost-effective computing solution for cloud service providers, government agencies, and large industrial enterprises.
| Model | Cooling Architecture | Rack / Tank Count | Max Power Density | Total Capacity | Container Type | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| 20ft Immersion › | Single-Phase Immersion (Integrated FDU) |
4 Tanks | 100 kW / Tank | 400 kW | 20ft High Cube | 6058 x 2438 x 2896 mm |
| 40ft Immersion › | Single-Phase Immersion (Integrated FDU) |
12 Tanks | 100 kW / Tank | 1.2 MW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 40ft Cold Plate (In-Row) › | In-Row CDU (Liquid-to-Liquid / Air Assist) |
12 Racks (Space for CDUs) |
60 kW / Rack | 720 kW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 40ft Cold Plate (Rack) › | Rack-Mounted CDU (Distributed Manifold) |
14 Racks (Maximized Space) |
50 kW / Rack | 700 kW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 20ft Cold Plate (Rack) › | Rack-Mounted CDU (Distributed Manifold) |
5 Racks | 50 kW / Rack | 250 kW | 20ft High Cube | 6058 x 2438 x 2896 mm |
The ICDC40-Type B arrives with a pre-installed 120kVA Modular UPS system. We use an intelligent 3-in-1 power distribution cabinet that is wired and tested in the factory. This integrated design saves 68% of space compared to field-assembled electrical rooms, maximizing space for your revenue-generating servers.
Factory prefabrication ensures perfect sealing for our Cold/Hot aisle containment system. Unlike site-built containment which often leaks, our modules are pressure-tested to eliminate hot spots. Combined with In-Row cooling, this precision engineering delivers a guaranteed PUE of 1.2.
Focus on the core cooling demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
3-15 kW per Cabinet
All-in-one integrated cabinet design, plug-and-play deployment (1-3 days), remote intelligent monitoring. Ideal for edge endpoints like retail stores, ATMs and small enterprise IT rooms.
8-30 kW per Cabinet
Column-level prefabricated design, flexible expansion by rows, fits existing server rooms without major reconstruction. PUE 1.2-1.4, perfect for medium-density enterprise IT deployments.
15-40 kW per Cabinet
Airtight cold/hot aisle enclosure, 90%+ cold air utilization, PUE reduced to 1.2-1.3. Cost-effective upgrade for traditional open data centers to support high-density servers.
10-500 kW (20ft/40ft)
Prefabricated all-in-one container (20ft/40ft), dustproof/anti-vibration, deployable outdoors. Liquid cooling optional for AI high-density computing (PUE ≤1.1), ideal for edge & temporary computing needs.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
