| Brand Name: | Soeteck |
| Model Number: | Data-R |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 4W |
| Payment Terms: | D/A |

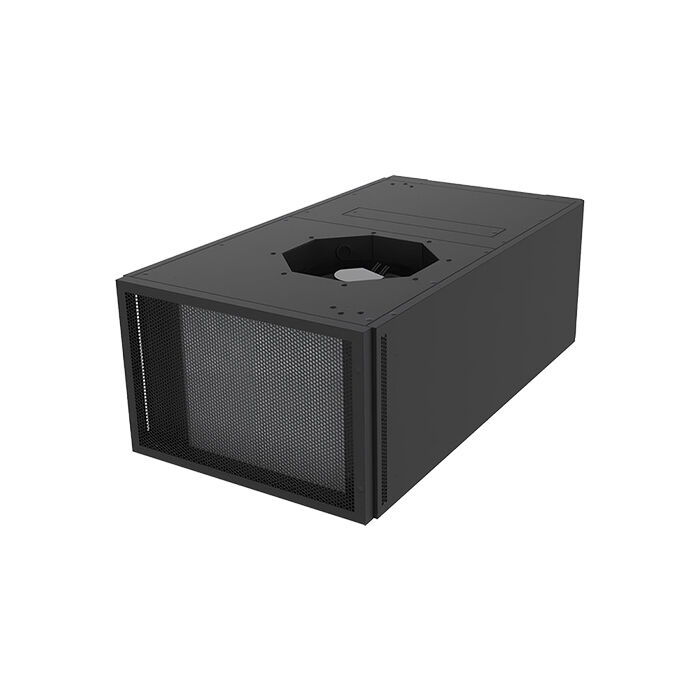

The Packaged In-Rack DX Precision ACs are innovative cooling solutions engineered specifically for micro data centers, edge computing sites, and compact server cabinets. Its unique top-mounted form factor delivers cooling exactly where it's needed while preserving valuable rack space for IT equipment, making it an ideal choice for space-constrained environments.
This self-contained 3.5kW unit utilizes advanced DX (Direct Expansion) cooling technology to provide efficient and reliable temperature control. Its all-in-one packaged design eliminates the need for complex external condensing units, simplifying installation and maintenance. Equipped with an intelligent controller, it offers seamless integration with Building Management Systems (BMS) for centralized monitoring and control, ensuring optimal performance and energy efficiency for your critical IT infrastructure.
| Model No. | Cooling Capacity | Airflow Rate | Dimensions (W×D×H) | Weight | Rated Power |
|---|---|---|---|---|---|
| SY-TA-002 › | 2.5kW | 500m³/h | 600×1100×390mm(9U) | 50kg | 2.5kW |
| SY-TA-003 › | 3.5kW | 600m³/h | 600×1100×390mm(9U) | 55kg | 3.5kW |
| SY-TA-005 › | 5.5kW | 1200m³/h | 600×1100×521mm(12U) | 65kg | 5.5kW |
The top-mounted configuration maximizes the usable space within your server rack for IT equipment while effectively managing hot and cold air separation for efficient cooling. This all-in-one packaged unit integrates all necessary components, eliminating the need for external condensers and complex refrigerant lines. The advanced DX cooling system, combined with a high-performance compressor, delivers reliable and energy-efficient cooling, even in the most demanding compact environments.
The unit features a sophisticated controller that provides intuitive local monitoring and diagnostics, with seamless BMS integration for centralized facility management. Optional SNMP support enables remote network monitoring and alerts. It uses eco-friendly R410A refrigerant and is designed to operate reliably across a wide ambient temperature range. The compact, lightweight packaged design simplifies installation, servicing, and shipping, significantly reducing deployment time and total cost of ownership.
Focus on the core cooling demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
7.5-300 kW
Designed for medium to large data centers, these units provide precise temperature and humidity regulation for the entire room. They utilize raised-floor or overhead delivery to ensure consistent airflow distribution and equipment stability.
5.6-90.1 kW
Positioned directly between server racks, this solution brings cooling closer to the heat source. It minimizes airflow paths to maximize efficiency, making it the ideal choice for managing hot spots and high-density computing clusters.
3.5-12.5 kW
An all-in-one solution integrated directly inside the server cabinet. This closed-loop system handles ultra-high thermal loads with maximum energy efficiency, isolating sensitive equipment from the outside room environment and noise.
1.0-4.0 kW
Compact and durable cooling designed for outdoor telecom cabinets, battery compartments, and industrial control panels. These units ensure reliable operation in harsh environments by strictly controlling internal temperatures and blocking contaminants.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
