| Brand Name: | Soeteck |
| Model Number: | SY-M |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 2-4W |
| Payment Terms: | D/A |

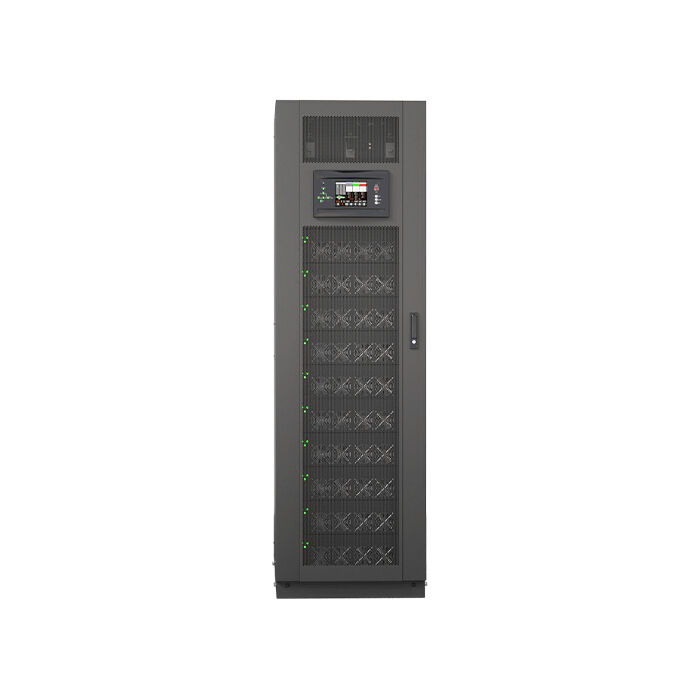

Introducing the next generation in critical power protection: the Smart Online Modular Uninterrupted Power Supply. This powerhouse is engineered to deliver 120kVA of reliable power, specifically tailored for large-scale data centers, telecommunications networks, and industrial control systems. By leveraging advanced Digital Signal Processing (DSP) technology and state-of-the-art Insulated Gate Bipolar Transistor (IGBT) technology, it provides exceptional electrical performance with minimal input harmonic distortion and a high power factor, ensuring that your most sensitive equipment receives a continuous and clean power source.
Designed with a focus on efficiency and scalability, this UPS features a compact 0.5m² footprint, making it an ideal choice for space-constrained environments. Its hot-swappable architecture supports the parallel operation of up to 20 power modules with N+X redundancy, allowing for seamless capacity expansion as your business grows and ensuring system availability even during maintenance. Fully compliant with global industry standards, it integrates intelligent battery management and an efficient thermal regulation system to maximize battery lifespan, reduce operational costs, and guarantee long-term reliability.
| Model No. | System Capacity | Input Voltage | Output Voltage | Efficiency | Wiring |
|---|---|---|---|---|---|
| SYM060/20 › | 60kVA | 304~485VAC (Line Voltage) fully loaded; 304~138AVC (Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC (Line Voltage) | 95% (Normal mode); ≥99% (ECO mode) | 3 phase N PE |
| SYM120/20 › | 120kVA | 304~485VAC (Line Voltage) fully loaded; 304~138AVC (Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC (Line Voltage) | 95% (Normal mode); ≥99% (ECO mode) | 3 phase N PE |
| SYM200/20 › | 200kVA | 304~485VAC (Line Voltage) fully loaded; 304~138AVC (Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC (Line Voltage) | 95% (Normal mode); ≥99% (ECO mode) | 3 phase N PE |
This UPS redefines space efficiency with an ultra-compact 0.5m² footprint, a critical advantage in modern data centers and server rooms. A single cabinet can be configured to support up to 200kVA, eliminating the need for multiple standalone units and significantly simplifying the power infrastructure layout for large-scale deployments.
The system supports the parallel connection of up to 20 hot-swappable power modules, offering unparalleled flexibility for capacity growth. Its N+X redundancy configuration ensures that power remains uninterrupted even if one or more modules are taken offline for service, thus maximizing the uptime of your critical applications.
At its core, the UPS utilizes cutting-edge IGBT modules for superior power conversion efficiency and reliability. When combined with sophisticated DSP control, this technology results in an ultra-low input THDi and a near-unity power factor. This not only ensures a stable and clean output for sensitive loads but also minimizes the UPS's impact on the mains supply, translating to lower operational costs and a reduced carbon footprint.
The integrated intelligent battery management system (BMS) optimizes charging cycles, significantly extending the service life of the batteries and reducing the total cost of ownership. Complementing this is a dedicated airflow design that efficiently channels cooling and prevents dust ingress, ensuring the UPS operates reliably even in the challenging thermal and environmental conditions of industrial settings.
With diverse UPS series spanning industrial-grade resilience, highly scalable modularity, and smart space-efficient designs, Soeteck delivers fully personalized, industry-leading high-availability power solutions to safeguard all critical electronics with unwavering reliability.
1-60 kVA
rack/tower convertible, space-saving, cost-effective, suitable for small-to-medium devices.
1-600 kVA
3-phase unbalance allowed, high overload, ideal for critical industrial & healthcare scenarios.
1-1200 kVA
high-frequency, wide input range, high integration, fits small server rooms to large facilities.
20-1600 kVA
hot-swappable modules, N+X redundancy, flexible expansion for dynamic load demands.
