| Brand Name: | Soeteck |
| Model Number: | SY-M |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 2-4W |
| Payment Terms: | D/A |

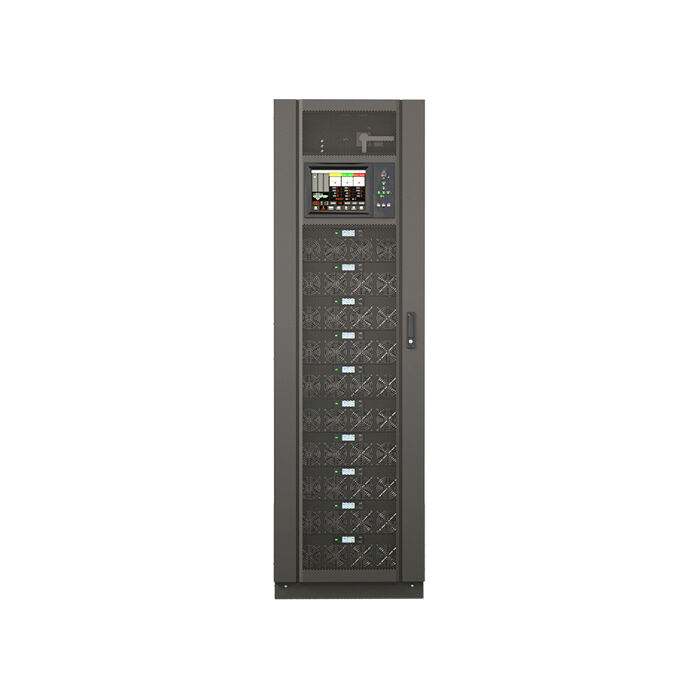

Engineered for mission-critical government, finance, telecom, medical and industrial scenarios, the 150kVA Online Modular UPS acts as a high-performance power backbone for critical environments. It prevents operational disruptions and data loss from grid instability, delivering consistent uninterrupted power to core systems—critical where even brief outages cause severe consequences.
Built with a modular architecture of 30kVA power modules, this UPS enables on-demand capacity expansion to avoid over-provisioning waste, and its N+X redundancy maximizes reliability. Intelligent sleep mode dynamically balances loads to boost energy efficiency and cut operational costs for large critical facilities. Featuring advanced IGBT technology and low input THDi, it elevates power quality and stability, adhering to top industry standards to shield mission-critical equipment from all power-related risks.
| Model No. | System Capacity | Input Voltage | Output Voltage | Efficiency | Wiring |
|---|---|---|---|---|---|
| SYM150/25X › | 150kVA(25x) | 304~485VAC (Line Voltage) fully loaded; 304~138AVC (Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC (Line Voltage) | 95% (Normal mode); 95% (Battery mode) | 3 phase in, 3 phase out |
| SYM250/25X › | 250kVA(25x) | 304~485VAC (Line Voltage) fully loaded; 304~138AVC (Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC (Line Voltage) | 95% (Normal mode); 95% (Battery mode) | 3 phase in, 3 phase out |
| SYM120/30X › | 120kVA(30x) | 304~485VAC (Line Voltage) fully loaded; 304~138AVC (Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC (Line Voltage) | 95% (Normal mode); 95% (Battery mode) | 3 phase in, 3 phase out |
| SYM180/30X › | 180kVA(30x) | 304~485VAC (Line Voltage) fully loaded; 304~138AVC (Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC (Line Voltage) | 95% (Normal mode); 95% (Battery mode) | 3 phase in, 3 phase out |
| SYM300/30X › | 300kVA(30x) | 304~485VAC (Line Voltage) fully loaded; 304~138AVC (Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC (Line Voltage) | 95% (Normal mode); 95% (Battery mode) | 3 phase in, 3 phase out |
With a capacity range of 150kVA, this UPS is engineered to meet the rigorous demands of diverse critical applications, from small-scale medical devices to large-scale financial data centers. Each power module, designed in a compact 3U form factor, significantly optimizes space utilization within equipment rooms, facilitating seamless integration into modern data center rack architectures.
The hot-swappable power modules allow for maintenance and replacement without system downtime. Coupled with an N+X redundancy configuration, the system ensures continuous operation even if individual modules fail. This design philosophy enables businesses to scale their power infrastructure incrementally, aligning capacity with actual growth to eliminate the inefficiency of upfront over-investment.
The UPS incorporates an intelligent sleep mode that dynamically adjusts the number of active power modules based on real-time load requirements. This feature minimizes energy consumption during periods of low demand, enhancing overall operational efficiency. Additionally, the utilization of state-of-the-art IGBT technology ensures a very low input Total Harmonic Distortion (THDi), which not only improves the quality of power drawn from the grid but also protects sensitive critical equipment from harmonic interference.
Featuring a 5.7-inch color LCD touchscreen with multilingual support, the UPS offers an intuitive interface for real-time status monitoring and system configuration, making it suitable for global deployments. Its robust design delivers exceptional overload protection (125% for 10 minutes, 150% for 1 minute) and maintains a high operational efficiency of over 95%, ensuring stable performance under extreme conditions while minimizing long-term energy costs.
With diverse UPS series spanning industrial-grade resilience, highly scalable modularity, and smart space-efficient designs, Soeteck delivers fully personalized, industry-leading high-availability power solutions to safeguard all critical electronics with unwavering reliability.
1-60 kVA
rack/tower convertible, space-saving, cost-effective, suitable for small-to-medium devices.
1-600 kVA
3-phase unbalance allowed, high overload, ideal for critical industrial & healthcare scenarios.
1-1200 kVA
high-frequency, wide input range, high integration, fits small server rooms to large facilities.
20-1600 kVA
hot-swappable modules, N+X redundancy, flexible expansion for dynamic load demands.
