| Brand Name: | Soeteck |
| Model Number: | SY-M |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 2-4W |
| Payment Terms: | D/A |

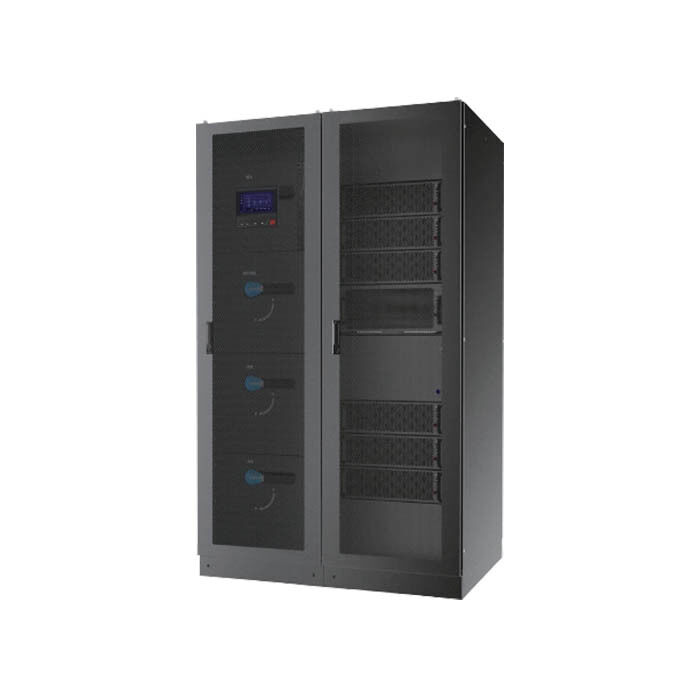

Tailored exclusively for large-scale data centers and other mission-critical scenarios like core telecommunications hubs and industrial control facilities, the Data Center Online Modular Uninterrupted Power Supply sets a new benchmark for power protection. It integrates ultra-wide capacity coverage, high-efficiency energy conversion, and intelligent management to meet the strict power stability demands of modern large-scale digital infrastructure.
Powered by 100kVA hot-swappable power modules, the system enables seamless capacity scaling from 400kVA to 1600kVA, avoiding the need for full-system replacement as load demands expand. Equipped with advanced 3-level inverter technology and IGBT rectification, it achieves up to 97% conversion efficiency in normal mode and 99% in ECO mode under stable grid conditions. Fully compliant with ISO 9001, CE, and relevant IEC standards, its modular architecture and real-time diagnostic functions ensure zero maintenance downtime, making it a high-value long-term investment for critical power operations.
| Model No. | System Capacity | Module Power | Input Voltage | Output Voltage | Efficiency | Wiring |
|---|---|---|---|---|---|---|
| SYM400 › | 400kVA | 100kVA × 4 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM500 › | 500kVA | 100kVA × 5 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM600 › | 600kVA | 100kVA × 6 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM800 › | 800kVA | 100kVA × 8 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1000 › | 1000kVA | 100kVA × 10 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1100 › | 1100kVA | 100kVA × 11 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1200 › | 1200kVA | 100kVA × 12 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1300 › | 1300kVA | 100kVA × 13 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1400 › | 1400kVA | 100kVA × 14 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1500 › | 1500kVA | 100kVA × 15 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
| SYM1600 › | 1600kVA | 100kVA × 16 | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC (Line Voltage) | ≥96% | 3 phase N PE |
Based on 100kVA hot-swappable power modules, the system supports capacity expansion from 400kVA to 1600kVA without interrupting running loads. Each module operates independently, which eliminates single-point failure risks and ensures continuous power supply for data center server clusters.
Equipped with advanced 3-level inverter and IGBT rectification technology, it reaches up to 97% efficiency in normal operation and 99% in ECO mode. With THDi lower than 3%, it minimizes grid harmonic interference and reduces energy waste for large-scale data centers.
Boasts strong overload tolerance: it can bear 110% load for 60 minutes, 150% load for 1 minute, and switch to bypass immediately when load exceeds 150%. Its ultra-wide input voltage range (138~485VAC) adapts to unstable grid conditions in complex environments.
Comes with a large LCD touchscreen for real-time monitoring of module status, load rate and battery health. Supports RS232, RS485, MODBUS and SNMP protocols, enabling remote fault diagnosis and historical log tracking for simplified data center power management.
With diverse UPS series spanning industrial-grade resilience, highly scalable modularity, and smart space-efficient designs, Soeteck delivers fully personalized, industry-leading high-availability power solutions to safeguard all critical electronics with unwavering reliability.
1-60 kVA
rack/tower convertible, space-saving, cost-effective, suitable for small-to-medium devices.
1-600 kVA
3-phase unbalance allowed, high overload, ideal for critical industrial & healthcare scenarios.
1-1200 kVA
high-frequency, wide input range, high integration, fits small server rooms to large facilities.
20-1600 kVA
hot-swappable modules, N+X redundancy, flexible expansion for dynamic load demands.
