| Brand Name: | Soeteck |
| Model Number: | SY-M |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Delivery Time: | 2-4W |
| Payment Terms: | D/A |

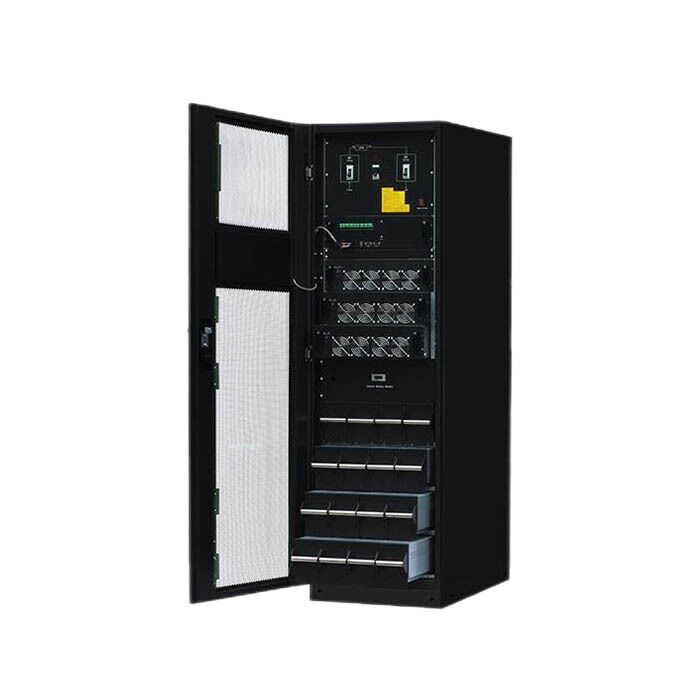

For mission-critical scenarios like data centers, telecom facilities, and industrial applications, the Integrated Modular UPS delivers a robust blend of flexibility, reliability, and efficiency. Engineered to protect high-value sensitive equipment from power disruptions, it ensures unbroken operation even in demanding grid environments where power stability is non-negotiable.
Equipped with 20kVA/18kW intelligent power modules, the system enables flexible capacity expansion up to 60kVA—eliminating the need for full-system replacement as load demands rise. Its dual-input design and three-phase voltage support, paired with advanced IGBT module technology, achieve 96% efficiency in ECO mode. Featuring hot-swappable battery packs and smart charging management, it cuts down maintenance downtime significantly while extending battery life, making it a cost-efficient solution for long-term critical power management.
| Model No. | System Capacity | Module Power | Input Voltage | Output Voltage | Efficiency | Wiring |
|---|---|---|---|---|---|---|
| SYM060/20B › | 60kVA | 20kVA × 3 | 380/400/415VAC (Line Voltage) 220/230/240VAC (Phase Voltage) |
380/400/415VAC (Line Voltage) | ≥95% | 3 phase N PE |
Constructed with 20kVA/18kW power modules (1 to 3 modules selectable), it enables smooth capacity expansion up to 60kVA. Each module operates independently, which eliminates single-point failure risks and strengthens protection for critical loads.
Battery packages support hot-swapping, allowing maintenance or capacity adjustment without system shutdown. The system can accommodate 32 to 44 batteries, flexibly meeting different backup time needs in diverse application scenarios.
With input THD < 3% and output THD < 1%, it reduces grid harmonic interference and delivers pure, stable power to sensitive equipment. The 125% bypass overload capacity for prolonged periods ensures stable operation under fluctuating load conditions.
Comes with a 5.7-inch LCD touchscreen (plus keyboard interface) for real-time monitoring of load rate, battery health, and module status. Supports RS232, RS485, and programmable dry contact interfaces for easy remote control and system integration.
With diverse UPS series spanning industrial-grade resilience, highly scalable modularity, and smart space-efficient designs, Soeteck delivers fully personalized, industry-leading high-availability power solutions to safeguard all critical electronics with unwavering reliability.
1-60 kVA
rack/tower convertible, space-saving, cost-effective, suitable for small-to-medium devices.
1-600 kVA
3-phase unbalance allowed, high overload, ideal for critical industrial & healthcare scenarios.
1-1200 kVA
high-frequency, wide input range, high integration, fits small server rooms to large facilities.
20-1600 kVA
hot-swappable modules, N+X redundancy, flexible expansion for dynamic load demands.
