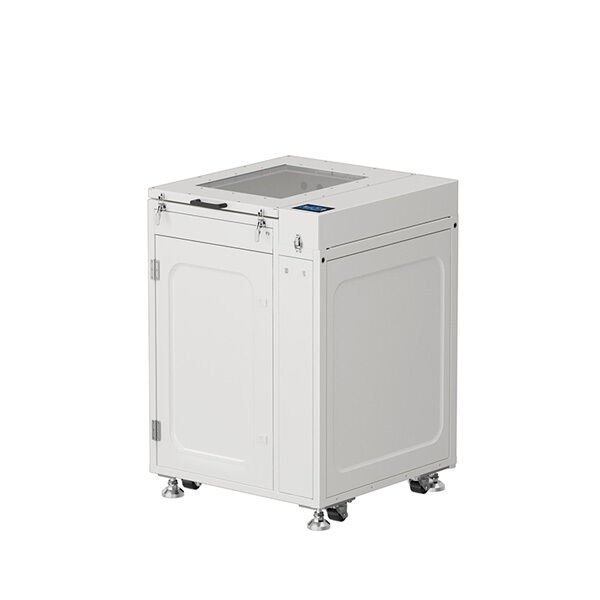

The High-Quality Immersion Cooling Tank for Liquid Cooling is engineered to tackle high-density computing challenges. By completely submerging servers in insulating coolant, this solution achieves ultimate heat dissipation efficiency with a PUE lower than 1.2.
Our modular system consists of core components including the Immersion Tank, CDU (Coolant Distribution Unit), and outdoor heat rejection units (Dry Cooler/Cooling Tower). Whether for small-scale dual-cabinet systems in research labs or large-scale multi-cabinet clusters in AI data centers, we provide flexible, green, and silent solutions.
| Model No. | Cooling Capacity | Rated Power | Flow Rate | Design Temp (In/Out) | Dimensions (WxDxH) |
|---|---|---|---|---|---|
| SY-RM-1000 › | 1000 kW | 18.5 kW | 95.39 m³/h | Pri: 35/45°C Sec: 50/40°C |
1000 x 1200 x 2200 mm |
| SY-RM-1350 › | 1350 kW | 26 kW | 128.89 m³/h | Pri: 35/45°C Sec: 50/40°C |
1396 x 1200 x 2245 mm |
| SY-RM-2000 › | 2000 kW | 33 kW | 190.78 m³/h | Pri: 35/45°C Sec: 50/40°C |
1396 x 1200 x 2245 mm |
By utilizing direct liquid contact cooling, we completely eliminate the energy-intensive compressors and fans found in traditional AC systems. The system achieves a PUE of < 1.2, significantly reducing Data Center OPEX.
The system operates at a noise level as low as 55-60dB, making it ideal for research labs or office environments. Additionally, the highly integrated modular design allows for factory prefabrication and rapid on-site installation.
Focus on the core cooling demands of high-density data center deployments, where our full range of liquid cooling products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
In-Rack / In-Row / In-Room
The heart of liquid cooling. Available in Rack-mounted (50-80kW), In-Row (350-900kW), and large-scale In-Room (up to 2MW) configurations. Features N+1 redundancy and smart control.
PUE < 1.2
Single-phase immersion technology for ultimate heat dissipation. Integrated plug-and-play design suitable for edge nodes and high-density clusters. Silent operation with PUE < 1.2.
Prefab & Modular
Rapid-deployment modular data center. A turnkey solution integrating power, liquid cooling (Cold Plate or Immersion), and monitoring. Ideal for AI training and crypto mining.
High-Quality
Essential components for safety and efficiency. Includes high-precision Manifolds, flexible Secondary Loops, and Quick Disconnects (QD) with leak-prevention design.
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
